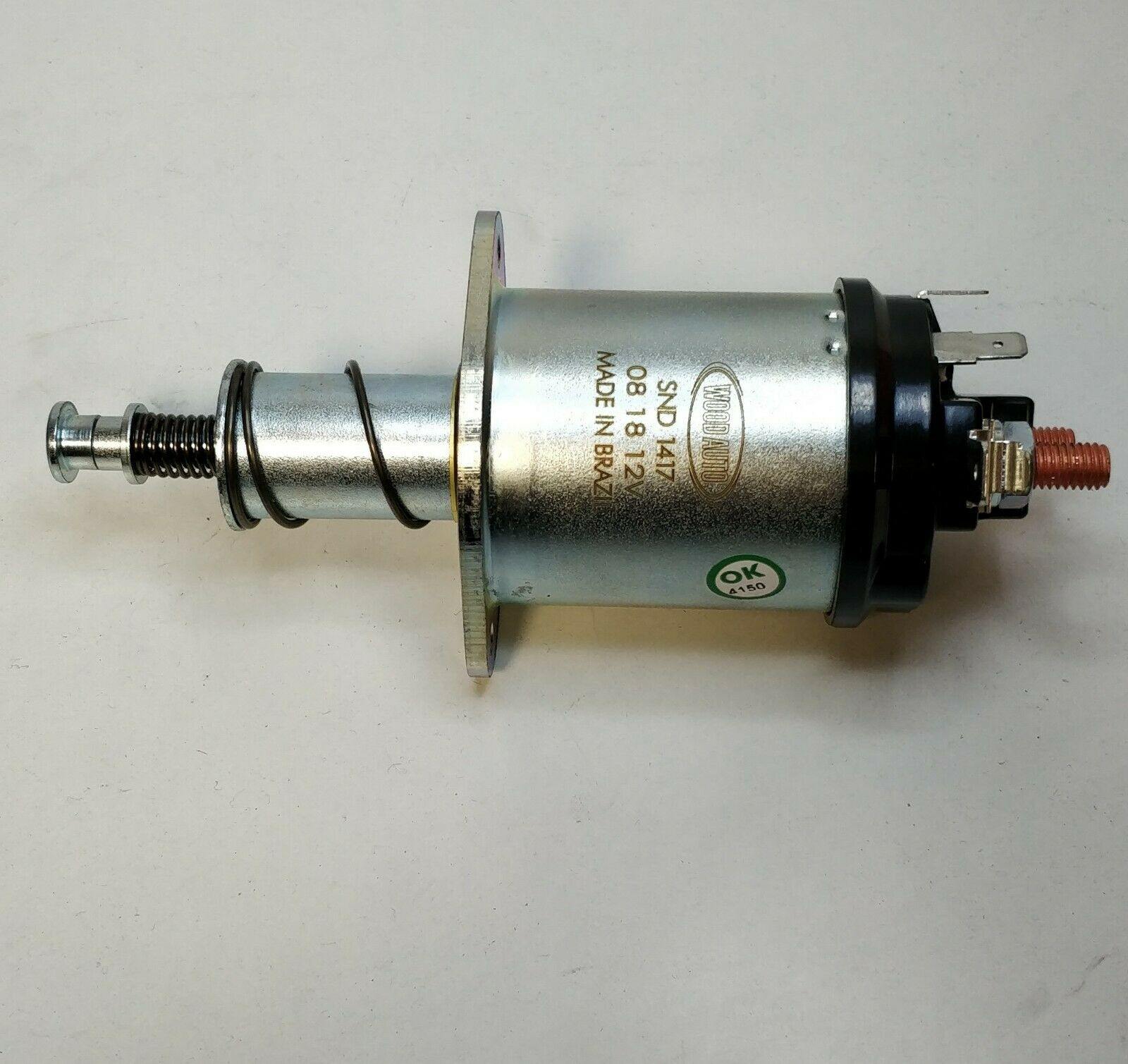

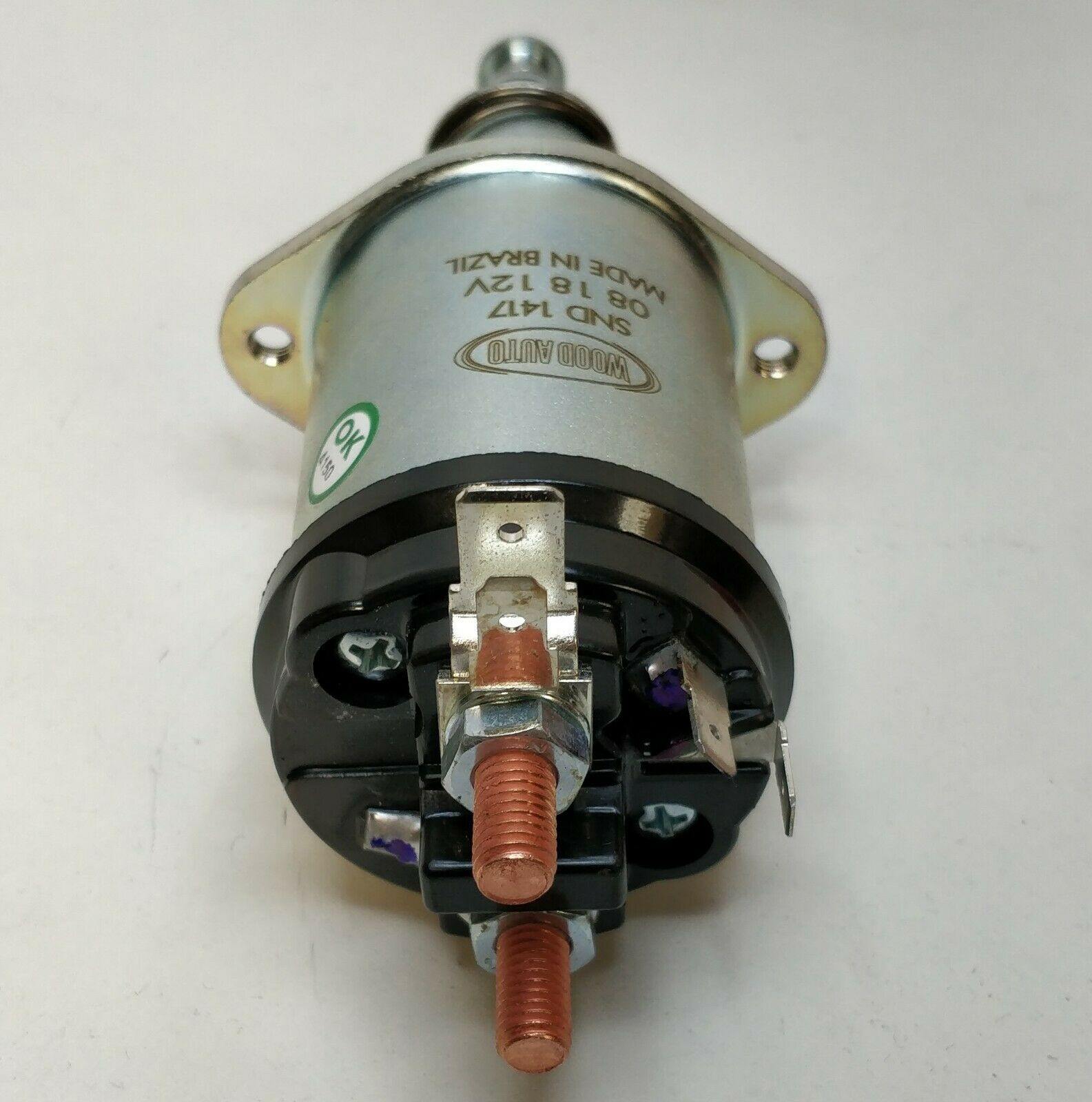

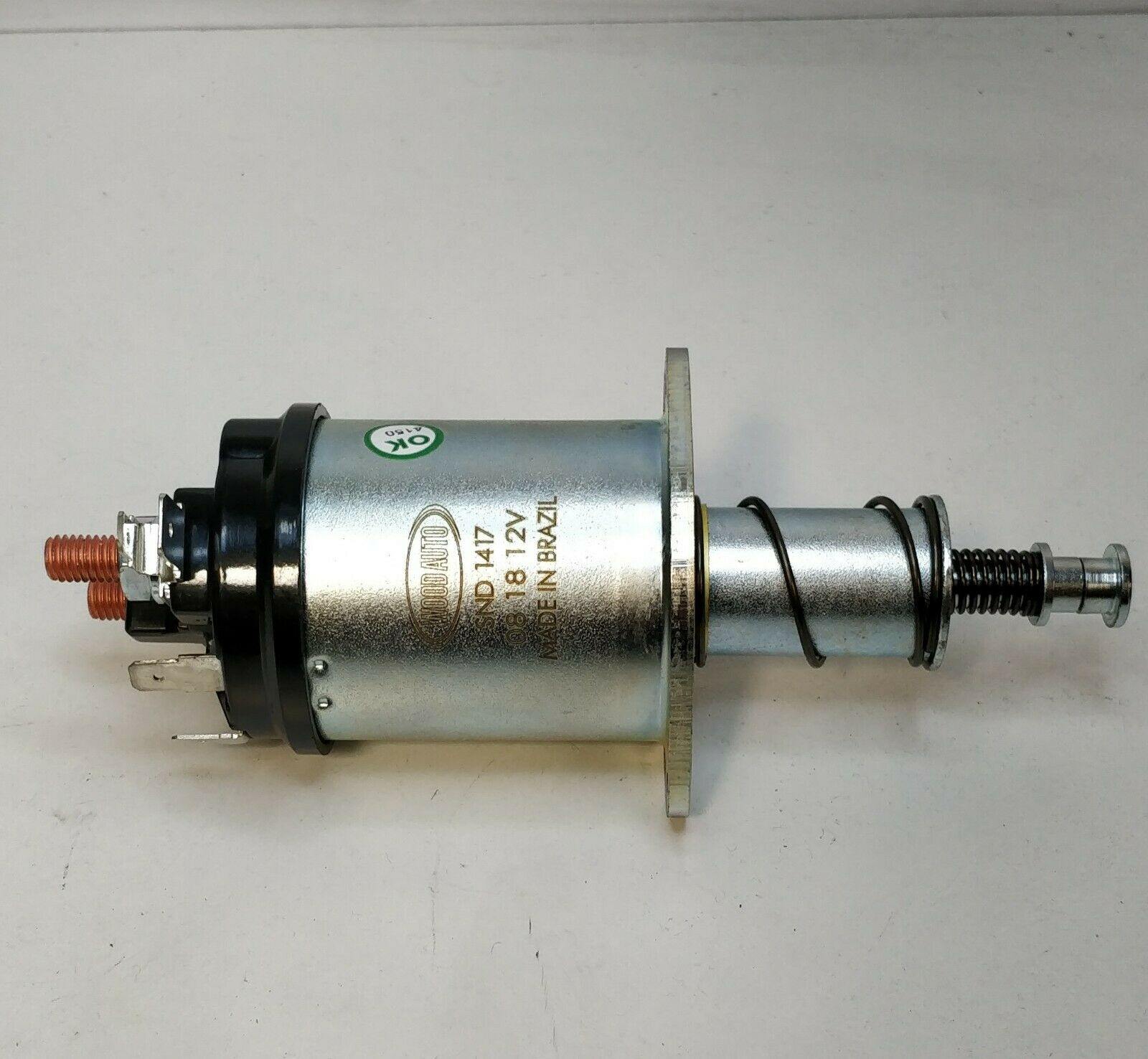

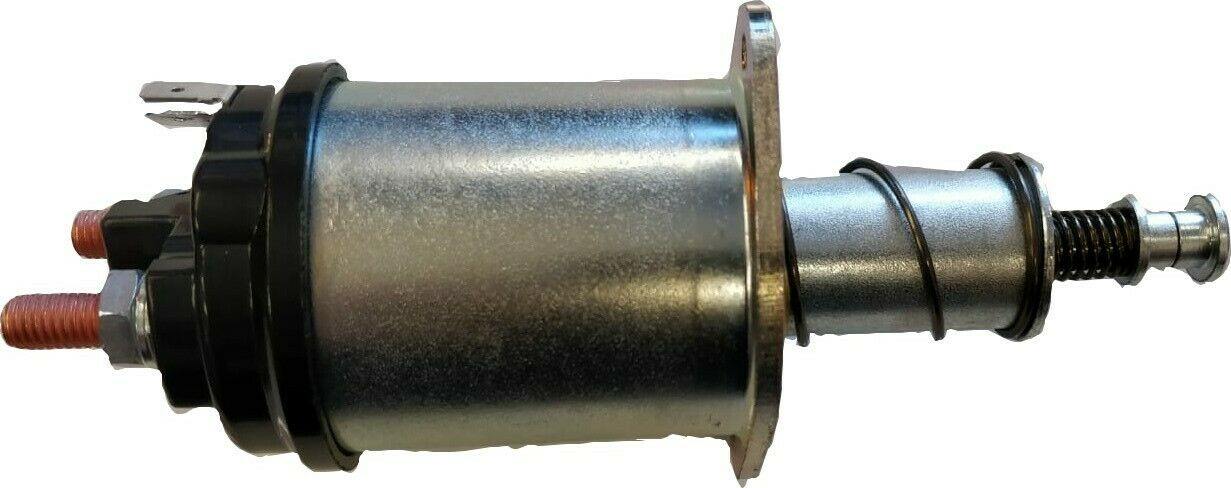

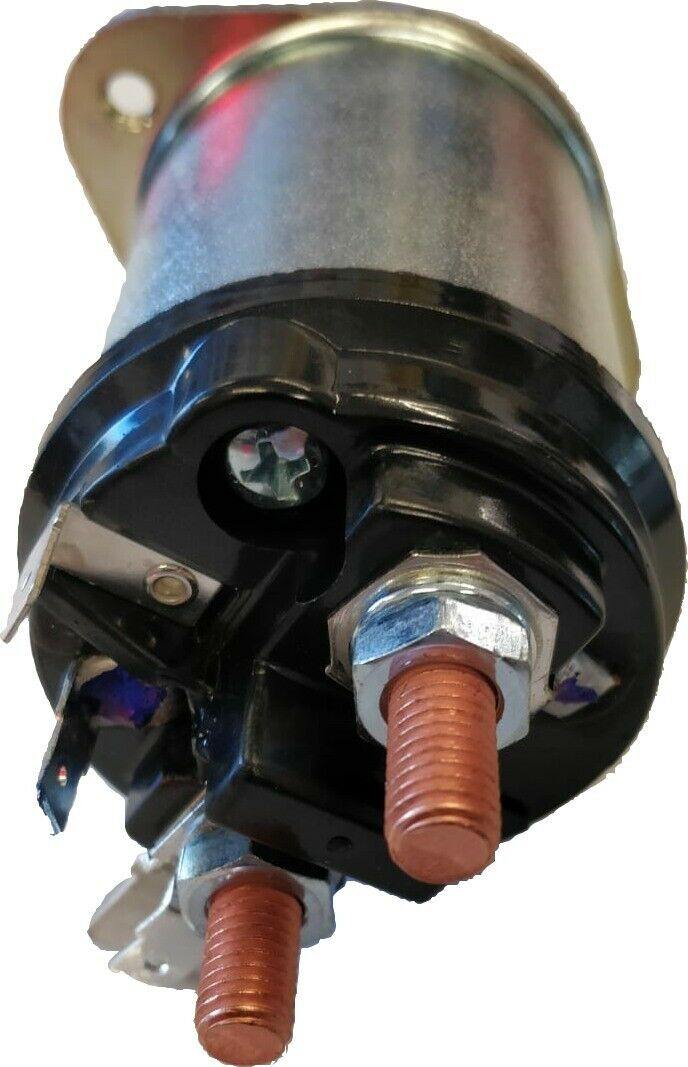

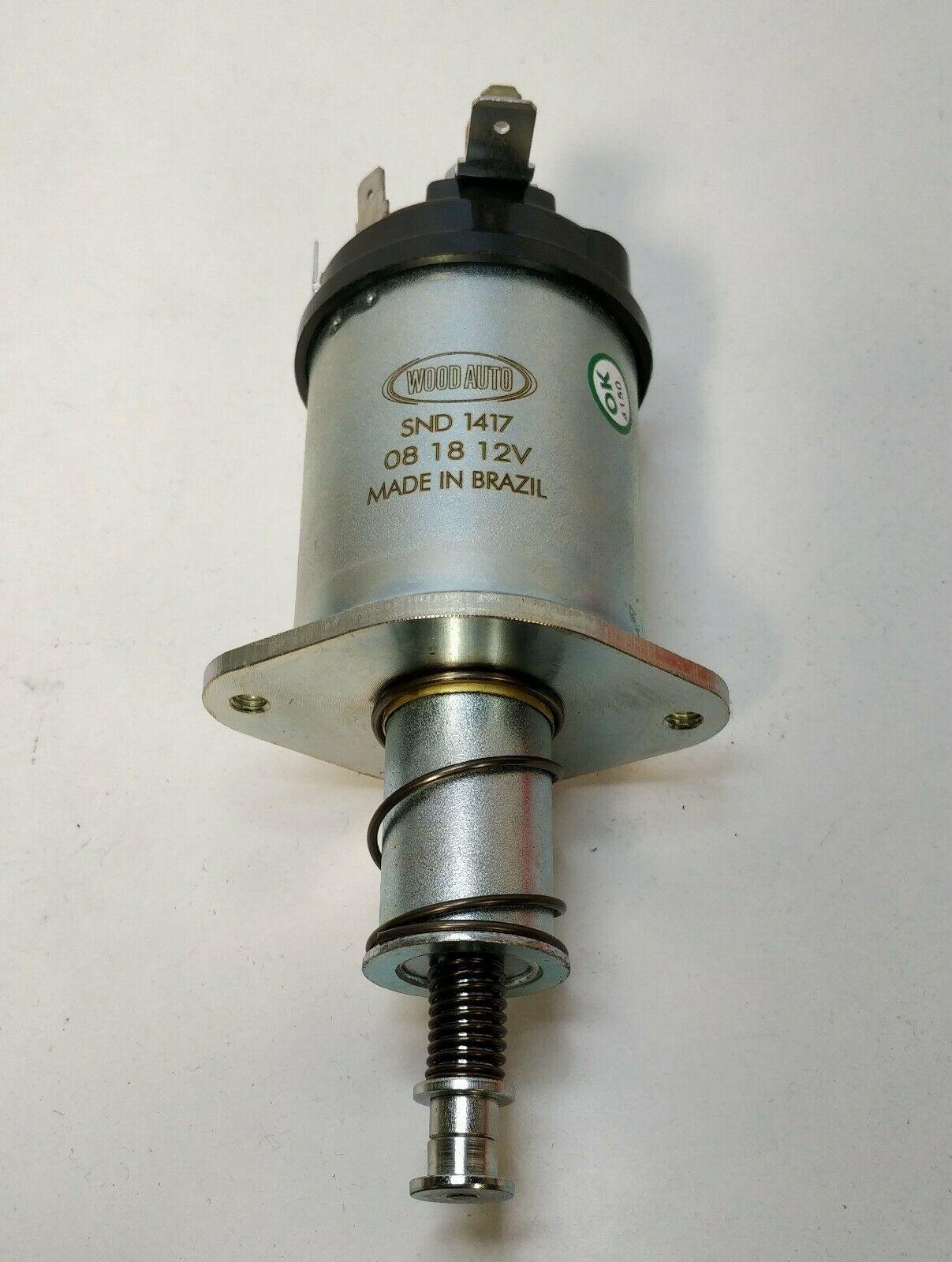

STARTER SOLENOID LUCAS TYPE FORD PERKINS MASSEY JCB M127 WOOD AUTO SND1417
12V REPLACES LUCAS STARTER MOTOR SOLENOID, FITS LUCAS M127 TYPE
131786
SND1417
Electrical information
- Voltage 12

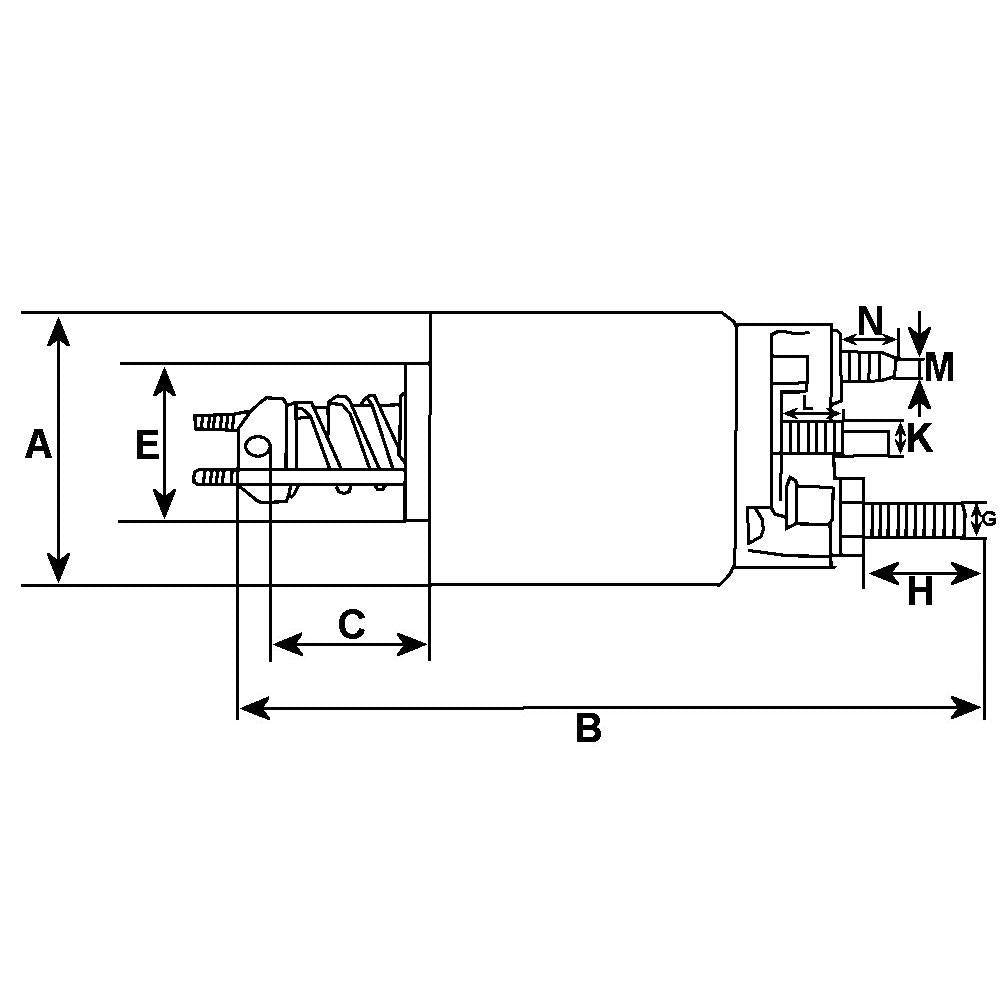

Physical information
- A OD mm 53.65
- B Total length mm 179.85
- No./mount. holes 2
- E ID/cover mm 26.40

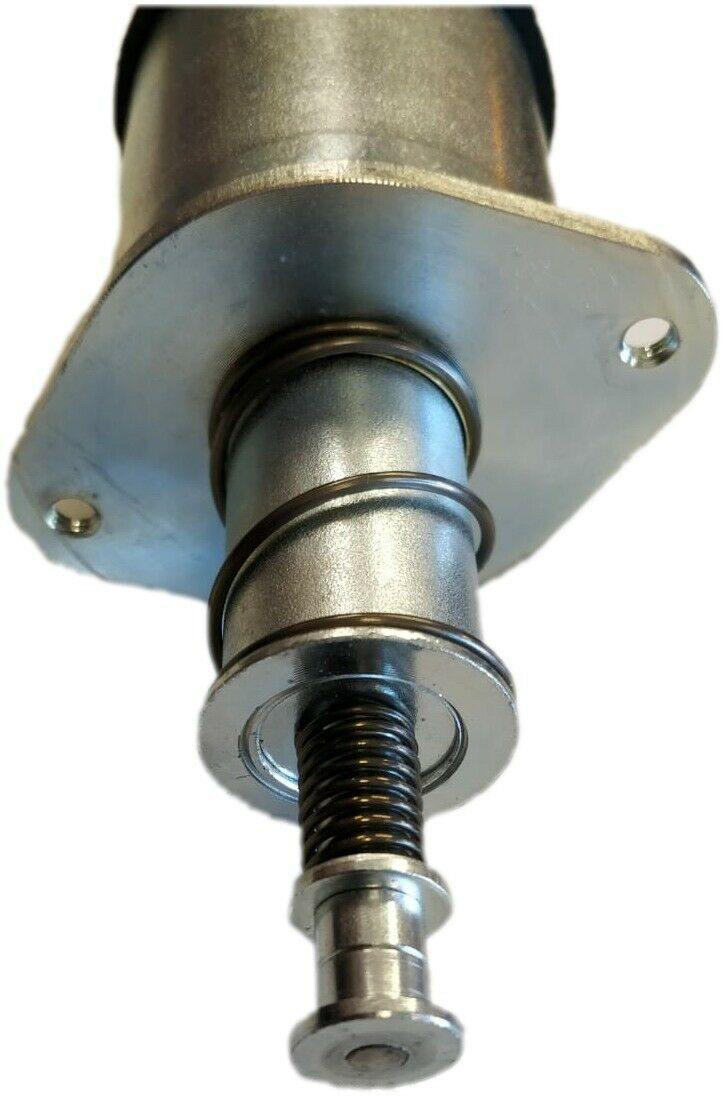

Plunger information
- Q Length mm 93.65
Bracket information
- D OD/cover mm 60.25
- G B+ M8
- Height/B+ 19.25
- M Coil bolt M8
- N Coil bolt l. 19.25

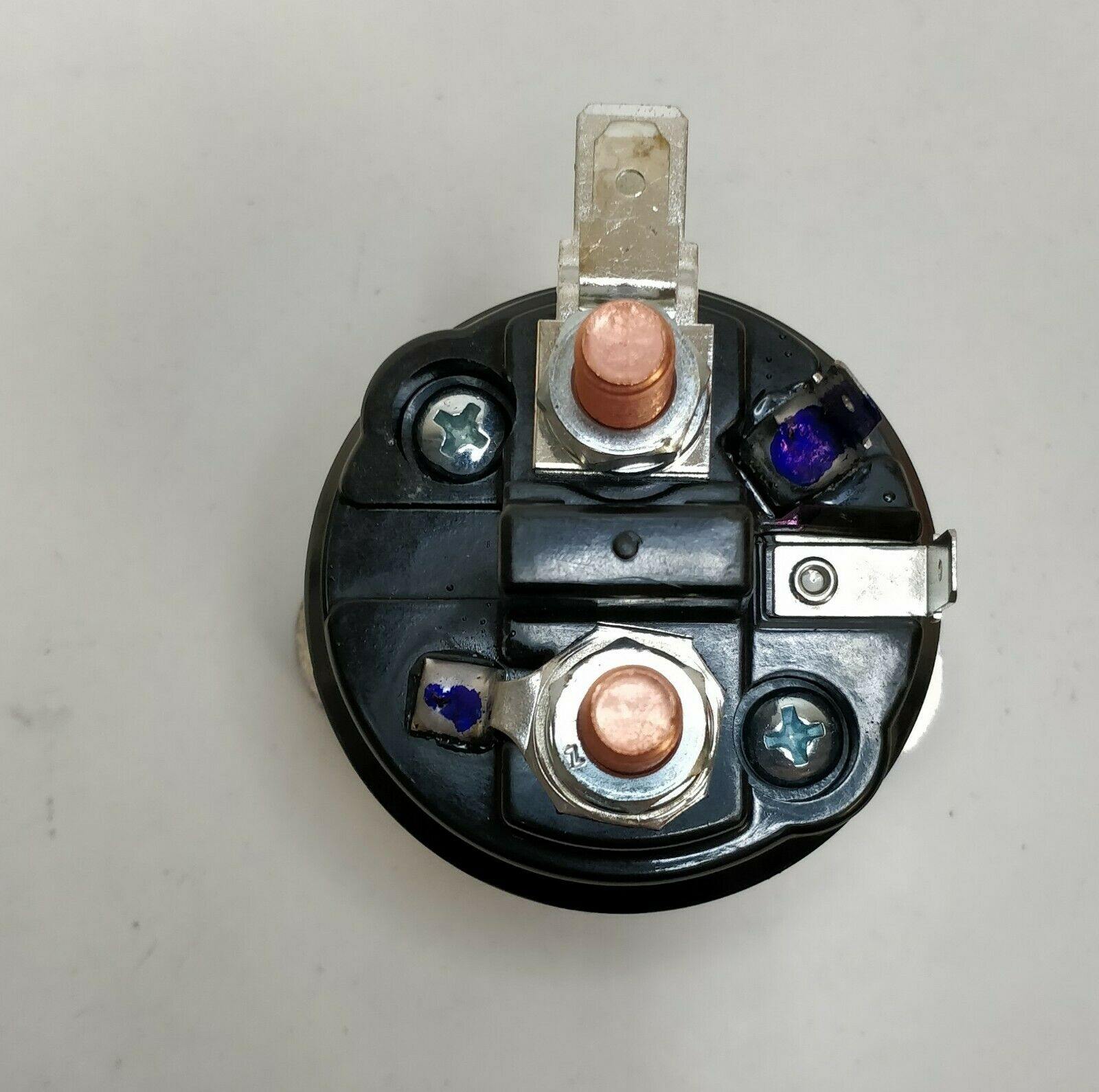

- No./terminals 3
- Terminal 50/mm 6.30
- Servicing 2M113, M45
CROSS REFERENCE
OEM REFERENCE
- BUTEC/PRESTOLITE 77110
- LANDROVER RTC4793
- LUCAS 60933104
- LUCAS 76888
- LUCAS 76906
- LUCAS 76917
- LUCAS 76925
- LUCAS 76940
- LUCAS 76962
- LUCAS 76982
- LUCAS 76983
- LUCAS 77011
- LUCAS 77021
- LUCAS 77092
- LUCAS 77110
- LUCAS 77128
- LUCAS 77156
- LUCAS 77161
- LUCAS 77168
- LUCAS 77169
- LUCAS TOB106
- LUCAS TOB115
- LUCAS TOB119
- LUCAS TOB128
- LUCAS TOB131
- LUCAS TOB145
- LUCAS TOB172
- LUCAS TOB196
- LUCAS TPB103
- LUCAS TPB106
- LUCAS TPB131
- HC-CARGO 131786
FITS UNITS LUCAS:
- 25616 25616A/H 25616A/J 25660 25660A/B
- 26269 26269A 26269A/F 26269E 26269H/L 26327
- 26327A/H 26335 26335A 26346 26346A/D 26346E/K
- 26348A/D 26362 26362A/E 26362B/D 26364 26364A/F
- 26372 26372A/B 26381 26381A/D 26381D 26381E/F
- 26383 26383A/D 26383B 26383D 26396 26396A/B
- 27405 27405A/B 27406 27406A 27426 27426A/F
- 27428 27428A/D 27428A/F 27431A/B 27437 27437A
- 27448 27448A 27449 27449A/B/D 27449A/D 27452
- 27452A 27457 27457A/D 27457A/F
