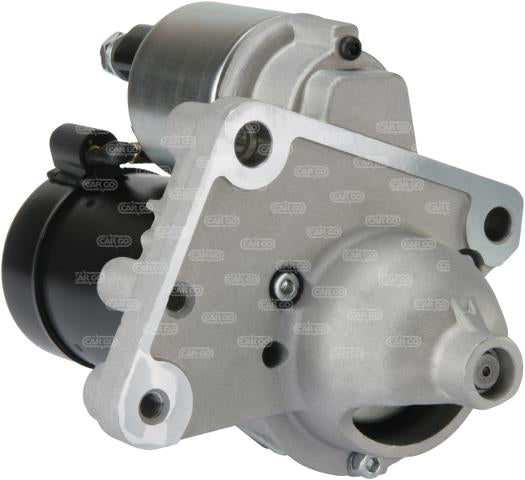

Starter motor for Peugeot, Citroen Toyota Fiat etc. 1.4HDI & 1.6HDI Cargo 113254
113254
Details and description
Voltage 12, kW 1.4, No./teeth 11,12, Rotation CW, Gear type GR, Mount. flange 62.00, B+ M8, No./mount. holes 4 (2), Drive dist. 14.00, Mount. hole 1 mm 9.00, Mount. hole 2 mm M8, Mount. hole 3 mm M8, Mount. hole 4 mm 9.00, Dist./back 162.00, Dist./front 49.50, Terminal 50 M5, Dist. mm 125.50, Dist. 2 29.50, Dist. 3 47.00, Dist. 4 90.00, Total length mm 206.00, Clutch type Dry, Drive type Steel, Prod. info BN
Electrical specifications
- Voltage 12
- kW 1.4

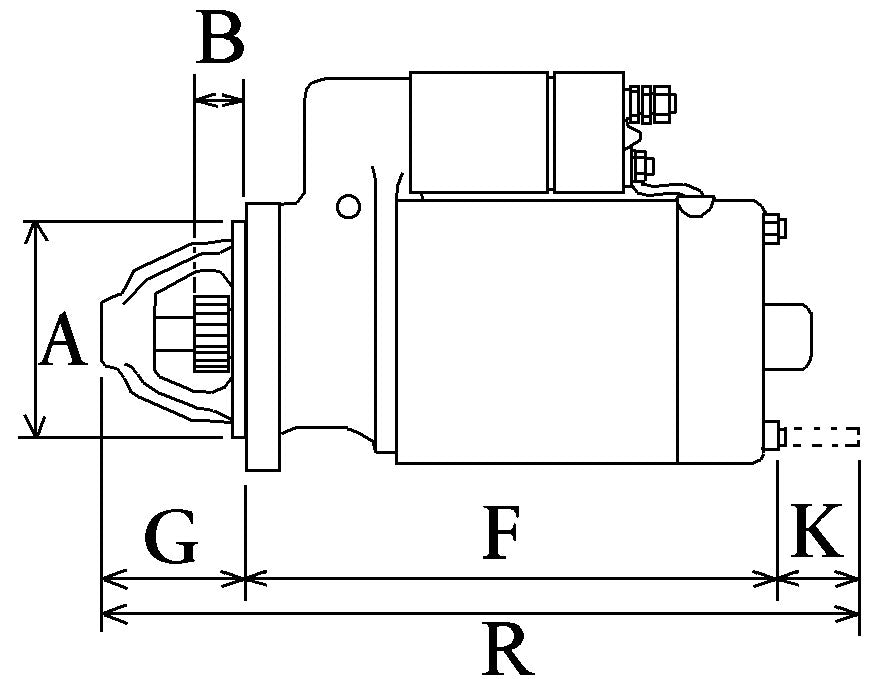

Physical specifications
- A Mount. flange 62.00
- B Drive dist. 14.00
- F Distance./back 162.00
- G Distance./front 49.50
- H No. of teeth 11,12
- I B+ M8 N Gear type GR

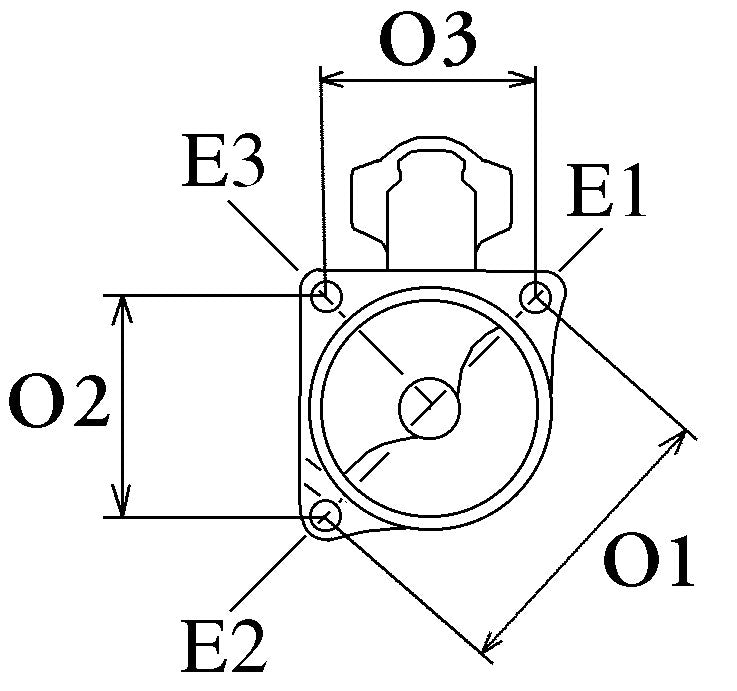

- O Dis. mm 125.50
- O Dist. 2 29.50
- O Distance. 3 47.00
- O Dist. 4 90.00
- P Rotation CR
- R Total length mm 206.00
- Further information
- No./mount. holes 4 (2)
- Clutch type Dry
- Drive type Steel
- Oil sealed No
- Waterproof No
Replacing
- 28100-yv010 TOYOTA
- 428000-1640 DENSO
- 63280091 MAGNETI MARELLI
- 9637813680 FIAT
- 9637813680 PEUGEOT
- 9640825280 PEUGEOT
- 9646679980 PEUGEOT
- 9664016980 PEUGEOT
- 9688268480 PEUGEOT
- 9688268580 PEUGEOT
- 9801667580 PEUGEOT
- d6ra110 VALEO
- M000T22472 MITSUBISHI
- M000T93581 MITSUBISHI
- M000T93582 MITSUBISHI
- m0t22472 MITSUBISHI
- m0t93581 MITSUBISHI
- M0T93582 MITSUBISHI
- TS14E110 VALEO
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
