Starter Motor To Fit New Holland, Fiat Tractor, Iveco Etc.
110813
Electrical information
- Voltage 12
- Kw 2.7
Physical information
- H No./teeth 9
- P Rotation CW
- N Gear type DD

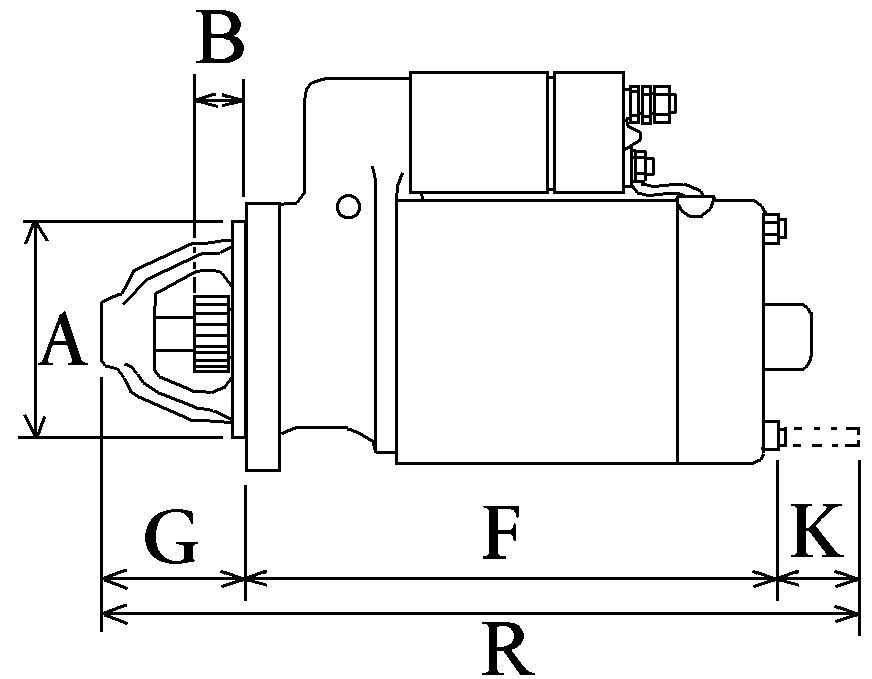

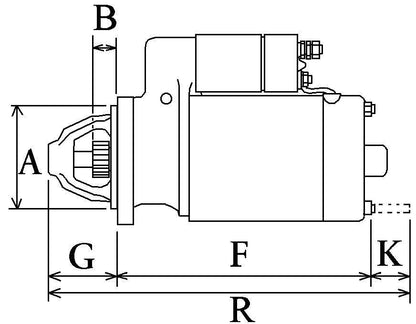

- A Mount. flange 110.00
- I B+ M10
- No./mount. holes 3 (0)

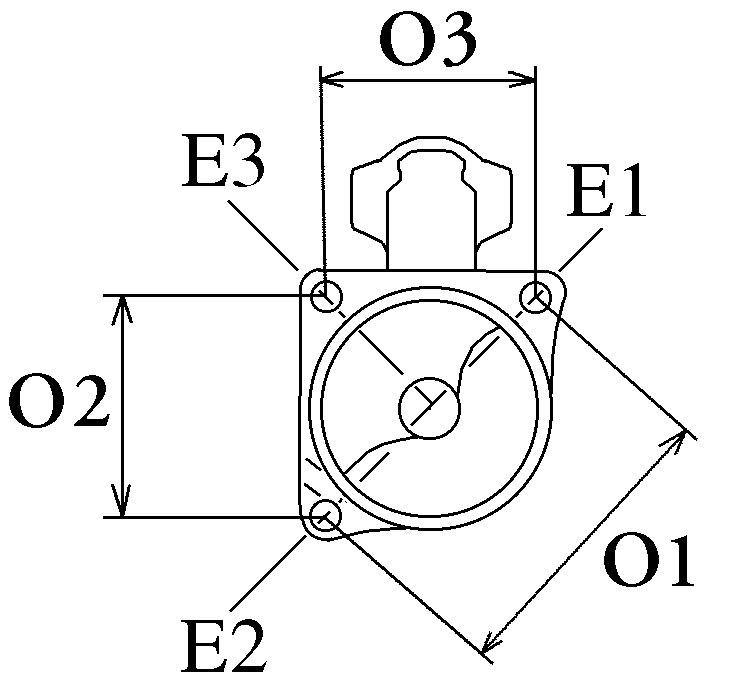

- B Drive dist. 27.00
- E Mount. holes 12.20
- E Mount. hole 2 12.20
- E Mount. hole 3 12.20
- F Dist./back 222.00
- G Dist./front 72.00
- M Mount. bracket No
- O Dist. mm 144.75
- O Dist. 2 101.65
- O Dist. 3 101.65
- R Total length mm 294.00
Catalogue information
- Drive type Steel
- Waterproof No
- Oil sealed No
Replacing
- 0001223503 Bosch
- 0001223504 Bosch
- 0001362032 Bosch
- 0001362039 Bosch
- 0001362105 Bosch
- 063217126000 Mako
- 20404081 Real
- 26290 lucas
- 26390 lucas
- 26390A lucas
- 26390B lucas
- 26390E lucas
- 30380319 Magneti Marelli
- 4169096 Fiat
- 4682998 Fiat
- 4710224 Fiat
- 4722682 Fiat
- 4728682 Fiat
- 4739353 Fiat
- 4745929 Fiat
- 4759929 Fiat
- 4807373 Fiat
- 500333269 Iveco
- 500338953 Iveco
- 61924015 lucas
- 61924066 lucas
- 63217101 Magneti Marelli
- 63217125 Magneti Marelli
- 63217126 Magneti Marelli
- 63522235 Magneti Marelli
- 82980757 New Holland
- 87376491 New Holland
- 88205005 Fiat
- 9144745 Magneton (Pal/Skoda)
- CS572 HC-PARTS
- LRS01976 lucas
- MT71A Magneti Marelli
- MT71AB Magneti Marelli
- MT71AC Magneti Marelli
- MT71AA Magneti Marelli
- S0850 lucas
Fits Applications
- Agrifull, AGRICULTURAL
- Allis Chalmers, AGRICULTURAL
- BENFRA, INDUSTRIALS
- Case, FORK LIFT
- Case IH, AGRICULTURAL
- Fiat, AGRICULTURAL
- Fiat, MISCELLANEOUS
- Fiat, PASSENGER CARS EU
- Fiat-Allis, AGRICULTURAL
- Fiat-Allis, INDUSTRIALS
- Ford, AGRICULTURAL
- Goldoni, AGRICULTURAL
- Iveco, MOTOR
- Iveco, MARINE
- Lister-Petter, INDUSTRIALS
- Manitou, FORK LIFT
- Manitou, INDUSTRIALS
- New Holland, AGRICULTURAL
- New Holland, INDUSTRIALS
- Terex, INDUSTRIALS
- Turk Traktor, AGRICULTURAL
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
