Ryder Tf2218/7H Smart Logic 7 Way Bypass Relay Towing Towbar Multi Plex Itc1210

RYDER SMART LOGIC 7 WAY BYPASS RELAY TOWING TOWBAR MULTI PLEX TF2218/7H ITC1210

ITC1210

Also suitable for complete LED wired trailers

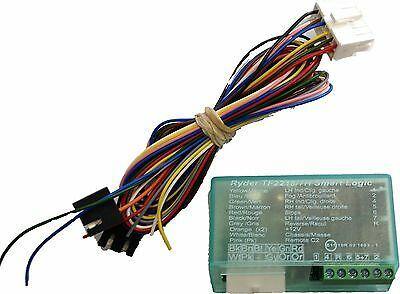

RYDER TF2218/7h SMART LOGIC

• This smart bypass fits virtually all cars, handles cars with standard or modulated circuitry (e.g. two functions in one bulb) and has a quiescent current of zero.
• Interface to the car is via signal wires from the relay.
• Interface to the trailer is via screw terminals.

Ryder SmartLogic relays are quick and easy to fit, and very cost-effective.

• They bypass all the vehicle’s bulb-failure warning systems.
• They protect the vehicle against damage from the trailer wiring
• They are compatible with LED trailer lights
• They use smart logic to deal with cars that have one bulb handling two functions (e.g. brake lights and sidelights sharing the same bulbs).
• They have two fuses to protect the relay against short circuits in the trailer wiring
• They are totally invisible to the car so the car does not detect them
• The signal wires to the car’s rear lighting loom are protected so that only a milliamp can pass from the car to the relay and nothing can pass from the relay to the car.
• All the power to switch the relays and to operate the trailer lights comes directly from the vehicle’s fusebox or battery.
• They monitor the trailer flashers with both a built-in buzzer and a wire for a remote sounder or warning lamp.
• The relays are fully protected against electrical "spikes" and other electrical hazards
• They are type-approved for EMC compliance
