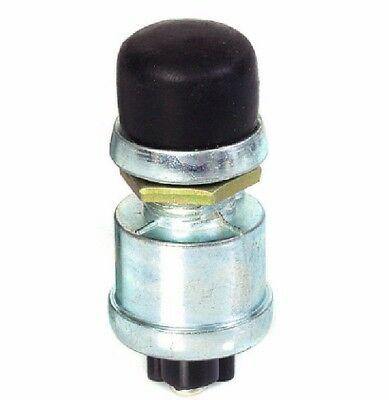

Push Button Momentary Switch Hd Starter Horn 12V 24V Splash Proof Robinson K599

Heavy duty 12V 24V starter motor, solenoid, horn etc.

Push Button Momentary Switch, Splash proof with rubber cover

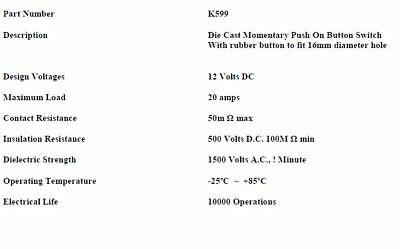

K599

• Requires a hole of approx 16mm dia for fitting in a panel or dash
• 30 amp @ 12v & 15 amp @ 24v Push button with screw terminals, and waterproof cover
• Use this as a start button, or anything else for that matter that requires a momentary supply
• This is a heavy duty version, very popular with oval racers
• Can be used in BriSCA F2, F1, V8, Ministox, Superstox, Hot Rods, Bangers
• Infact any oval motor sport, as well as kit cars, boats, 4x4 etc etc
• WIRE CONNECTION VIA 2 x SCREW TERMINALS

DIMENSIONS

• Overall length 61.8 mm
• dia of body at largest point 28.9 mm
• dia metal ring at base of rubber 26.6 mm
