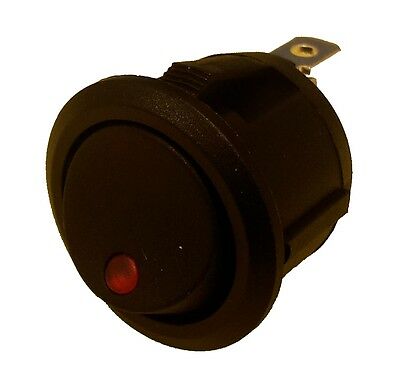

On-Off Rocker Switch Round With Red Led Car Lorry Dash 12V 24V Durite 0-531-05

DURITE ROUND ROCKER SWITCH WITH RED LED DUAL VOLTAGE 12V/24V

0-531-05

Easy setup

• 20mm hole is required and the switch will sit in nicely
• The switch comes with a keyhole slot to prevent unwanted rotation

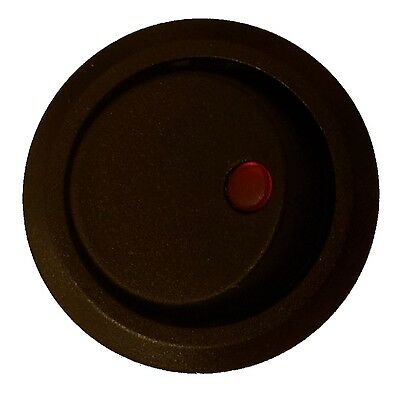

• Red LED will light up when the switch is turned on

Description

• Note 1 On/off round mini rocker switch
• Note 2 Red LED
• Note 3 12V / 24V

• On/off, single pole, plastic rocker switch
• 12/24 volt LED indicator

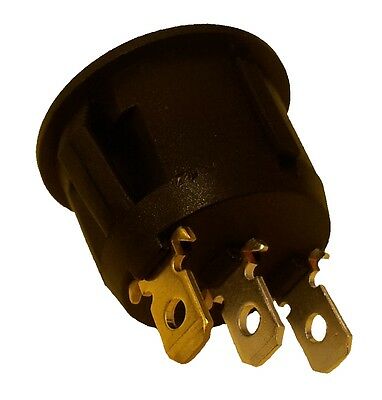

• 4.8mm blade terminals
• Snap fits into 20mm diameter panel hole
• 10 amps at 12 volts DC rating

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).


A High Quality Durite Product
