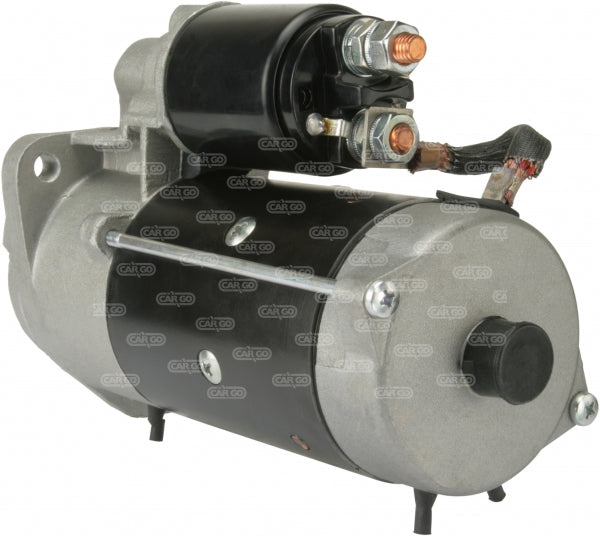

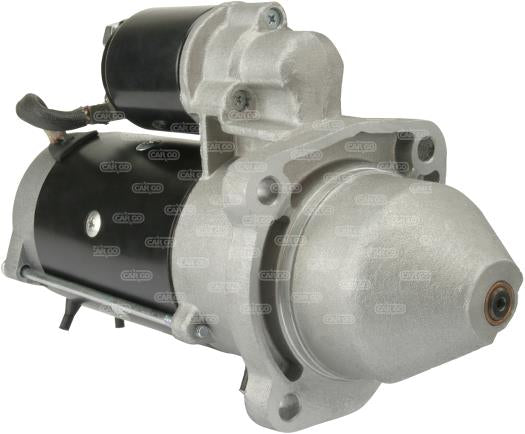

New Reduction Gear 3.0Kw 12v Starter Motor Fits Deutz Khd Fahr Agricultural & Generators 112071

New Reduction Gear 3.0Kw 12v Starter Motor Fits Deutz Khd Fahr Agricultural & Generators 112071

112071

Details and description

Voltage 12, kW 3.0, Mount. flange 89.00, Drive dist. 28.80, Dist./back 228.50, Dist./front 76.80, No. of teeth9, B+ M10, Gear type GR, Dist. mm 126.60, Dist. 2 89.60, Dist. 3 89.60, Rotation CR, No./mount. holes 3 (0), Drive type Steel, Total length mm 315.80, Oil sealed No, Waterproof No

Electrical specifications

• Voltage 12
• kW 3.0

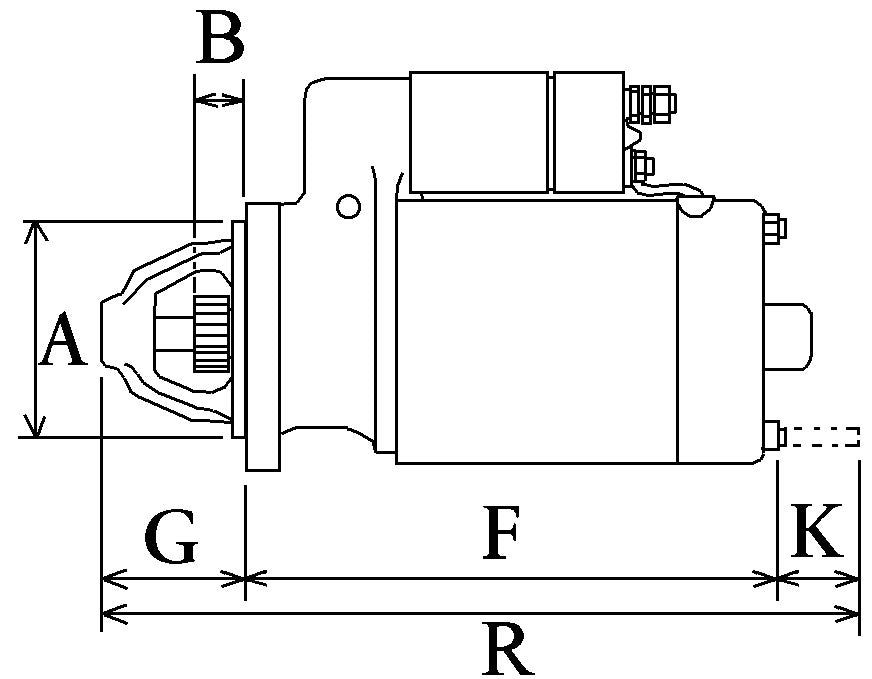

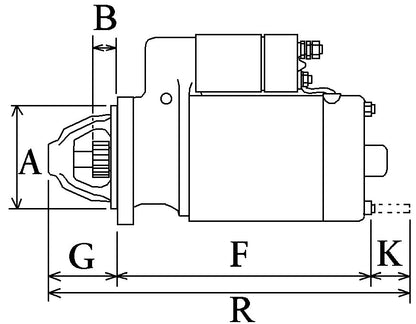

 Physical specifications

• A Mount. flange 89.00
• B Drive dist. 28.80
• F Dist./back 228.50
• G Dist./front 76.80
• H No. of teeth 9
• I B+ M10
• N Gear type GR

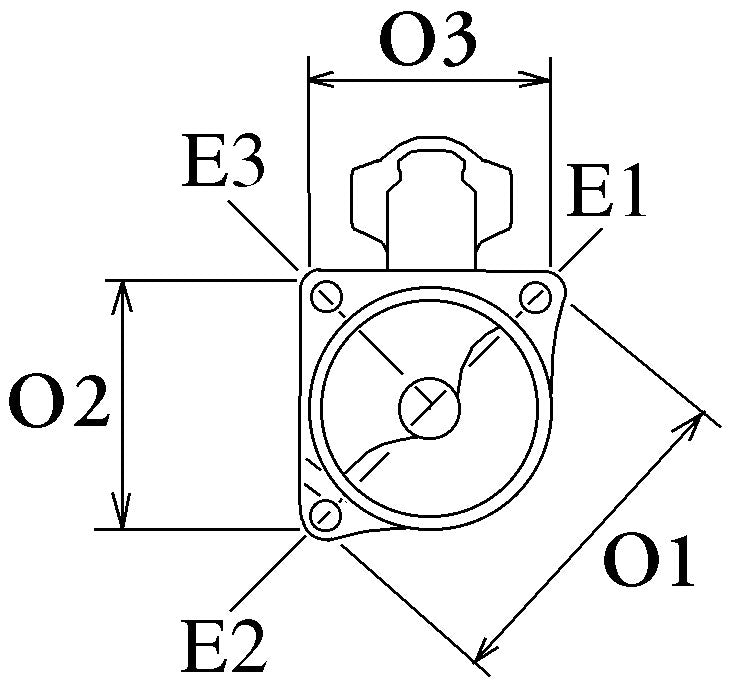

• O Dist. mm 126.60
• O Dist. 2 89.60
• O Dist. 3 89.60
• P Rotation CR
• R Total length mm 315.80

Further information

• No./mount. holes 3 (0)
• Drive type Steel
• Oil sealed No
• Waterproof No

Replacing

Bosch

• 0001230006
• 0001230014
• 0001262002

Khd

• 1183677
• 1180928
• 1180928KZ
• 1181976
• 1182233KZ
• 1183235
• 01180928
• 01180928KZ
• 01181976
• 01182233KZ
• 01183235
• 01183677

Iskra Letrika

• 11.130.841
• azf4514

Fendt

• f716900060060

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
