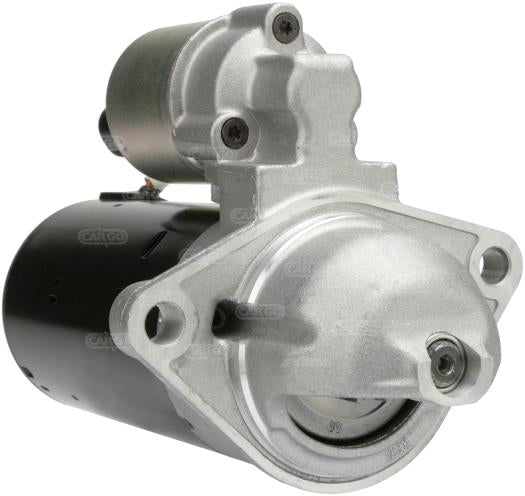

New 12v Starter to fit Perkins JCB 100/200 KHD Truck Lorry Cargo 112534

New 12v Starter to fit Perkins JCB 100/200 KHD Truck Lorry Cargo 112534

112534

Details and description

Voltage 12, kW 2.0, Mount. flange 74.00, Drive dist. 20.00, Dist./back 169.00, Dist./front 55.00, No. of teeth9, B+ M8, Gear type GR, Dist. mm 111.50, Rotation CR, No./mount. holes 2 (0), Drive type Steel, Total length mm 239.00, Oil sealed No, Waterproof No

Electrical specifications

• Voltage 12
• kW 2.0

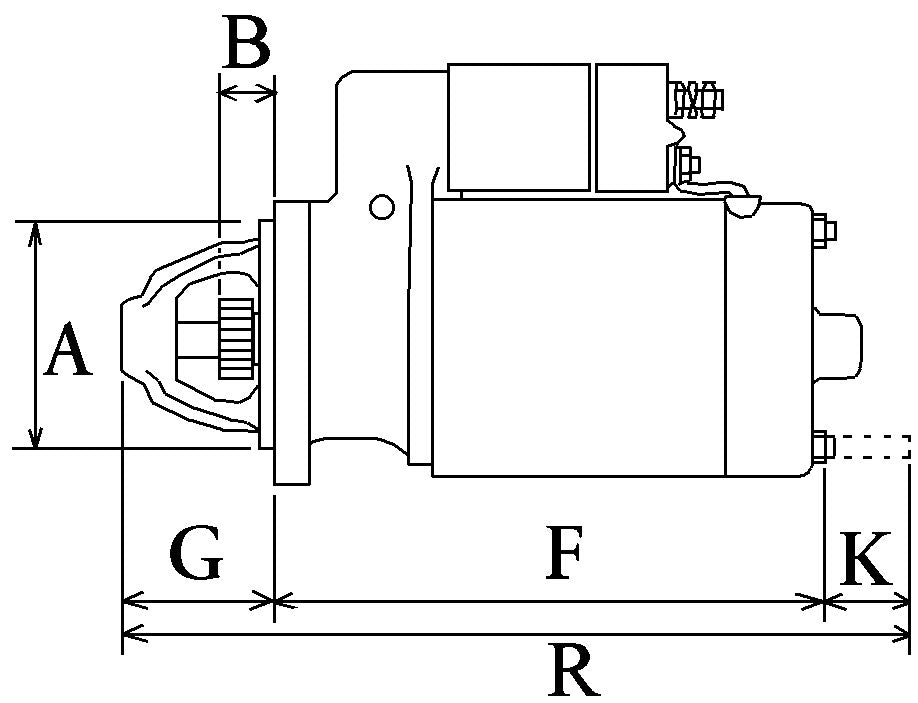

Physical specifications

• A Mount. flange 74.00
• B Drive dist. 20.00
• F Dist./back 169.00
• G Dist./front 55.00
• H No. of teeth 9
• I B+ M8
• N Gear type GR
• O Dist. mm 111.50
• P Rotation CR
• R Total length mm 239.00

Further information

• No./mount. holes 2 (0)
• Drive type Steel
• Oil sealed No
• Waterproof No

Replacing

BOSCH

• 0001109035

ISKRA

• aze2155
• 11.131.267

PERKINS

• 1850866
• 185086600
• U5MK8261

JCB

• 714-35600

REMY (DELCO)

• 8000286

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
