New 12v Starter Motor to fit Arona Lombardini Ferrari BMW Piaggio Mosa Hatz Cargo 112172
112172
Details and description
Voltage 12, kW 1.6, Mount. flange 76.00, Drive dist. 28.00, Dist./back 200.00, Dist./front 63.00, No. of teeth9, B+ M8, Gear type GR, Dist. mm 103.85, Rotation CR, No./mount. holes 2 (0), Clutch type Dry, Drive typeSteel, Terminal 30h M5, Total length mm 267.50, Oil sealed No, Waterproof No
Electrical specifications
- Voltage 12
- kW 1.6

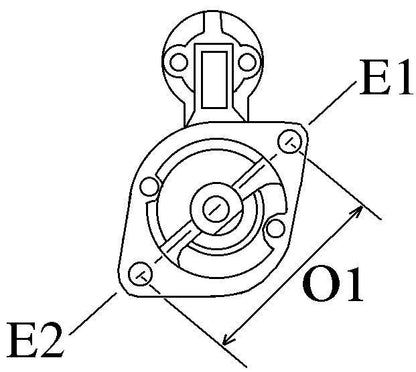

- Physical specifications
- A Mount. flange 76.00
- B Drive dist. 28.00
- F Dist./back 200.00
- G Dist./front 63.00
- H No. of teeth 9
- I B+ M8
- N Gear type GR
- O Dist. mm 103.85
- P Rotation CR
- T Terminal 30h M5
- R Total length mm 267.50
Further information
- No./mount. holes 2 (0)
- Clutch type Dry
- Drive type Steel
- Oil sealed No
- Waterproof No
Replacing
BOSCH
- 0001110028
- 0001110041
- 0001110042
- 0001314001
- b001117013
BMW
- 12411713898
- 12411720636
- 12411720663
- 12411720664
- 1713898
- 1720663
- 1720664
MAGNETTI MARELLI
- 63223209
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
