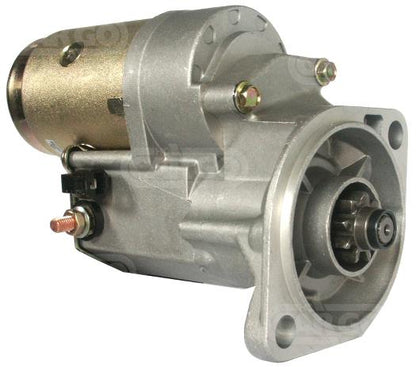

New 12v Starter Hyster Isuzu Forklift Cargo 113132

New 12v Starter Hyster Isuzu Forklift Cargo 113132

113132

Details and description

Voltage 12, kW 2.2, Mount. flange 95.00, Drive dist. 10.00, Dist./back 162.00, Dist./front 21.00, No. of teeth9, B+ M8, Gear type GR, Dist. mm 120.00, Rotation CR, No./mount. holes 2 (0), Drive type Steel, Total length mm 237.00, Oil sealed No, Waterproof No

Electrical specifications

• Voltage 12
• kW 2.2

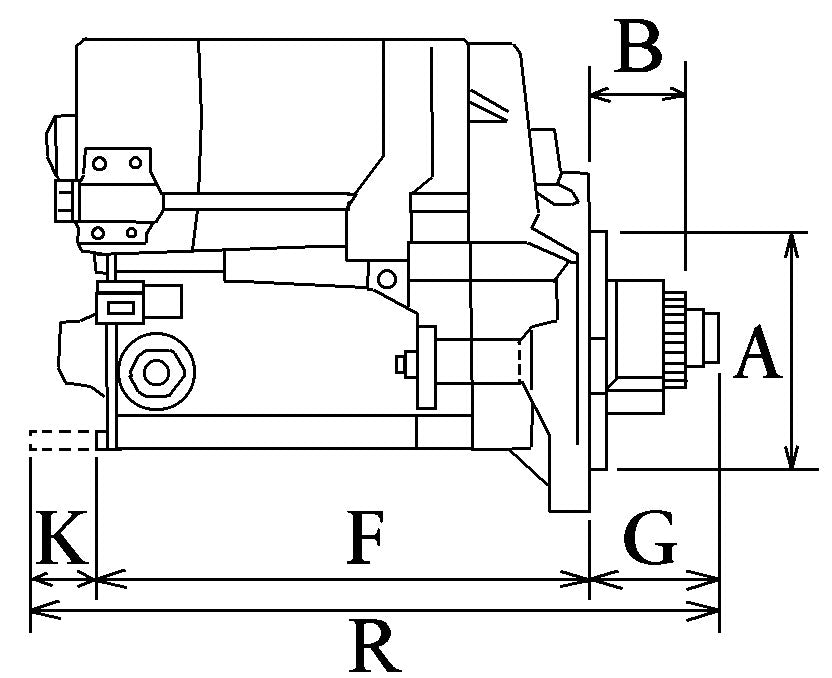

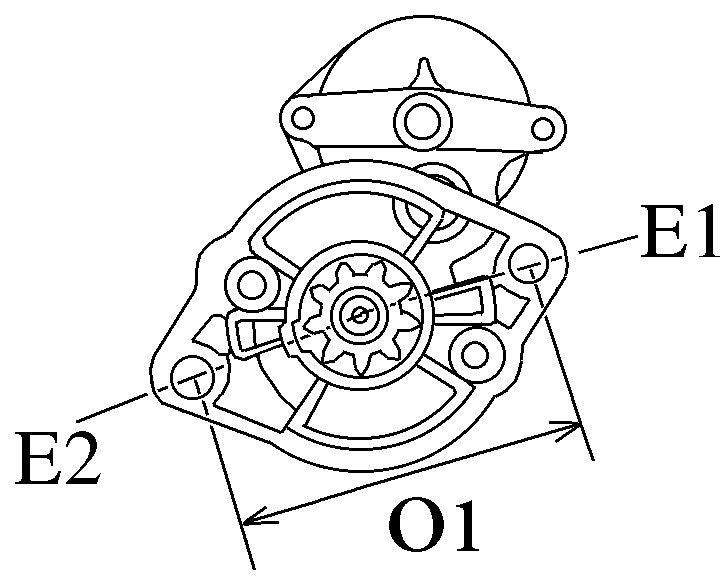

Physical specifications

• A Mount. flange 95.00
• B Drive dist. 10.00
• F Dist./back 162.00
• G Dist./front 21.00
• H No. of teeth 9
• I B+ M8
• N Gear type GR
• O Dist. mm 120.00
• P Rotation CR
• R Total length mm 237.00

Further information

• No./mount. holes 2 (0)
• Drive type Steel
• Oil sealed No
• Waterproof No

Replacing

DENSO

• 128000-0830
• 128000-0831
• 128000-0832
• 128000-0833
• 228000-1890
• 228000-1891
• 228000-1892
• 228000-1893
• 228000-8040
• 228000-8041

PERKINS

• 2873k401

ISUZU

• 8970429970
• 8970429971
• 8970429972

IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
