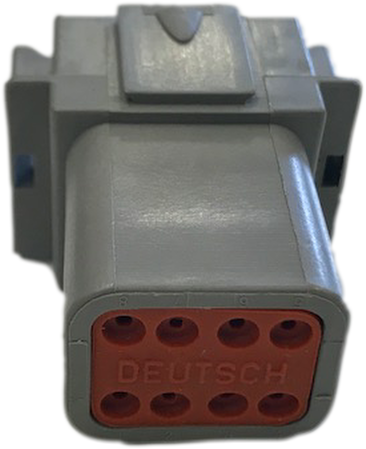

Deutsch 8 Way Plug Dt Series Male Connector Kit Mure DT04-8PA C015/W8P

DEUTSCH 8 WAY PLUG DT SERIES MALE CONNECTOR KIT MURE DT04-8PA C015/W8P

GENUINE DEUTSCH DT SERIES MALE 8-PIN SOCKET KIT

The Deutsch DT series connectors are by far the most popular connector used in many automotive, industrial and Motorsport applications.

Available in 2,3,4,6,8 and 12 pin configurations, all with 13A rated continuous capacity.

Deutsch has created the DT line to be weather resistant as well as dust proof,resulting the DT series connectors being rated to IP68, which means the connection will withstand submersion in water up to 3 meters as well as being “Dust Tight” (No ingress of dust; complete protection against contact)

DT04-8P-C015/W8P

Wire Sealing Range

• Thin Wall - 1.35mm-3.05mm wire insulation diameter

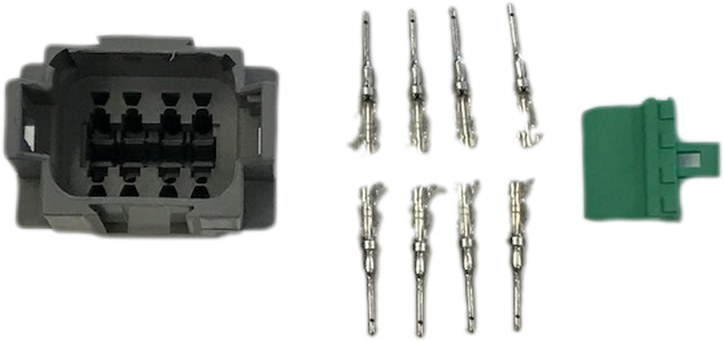

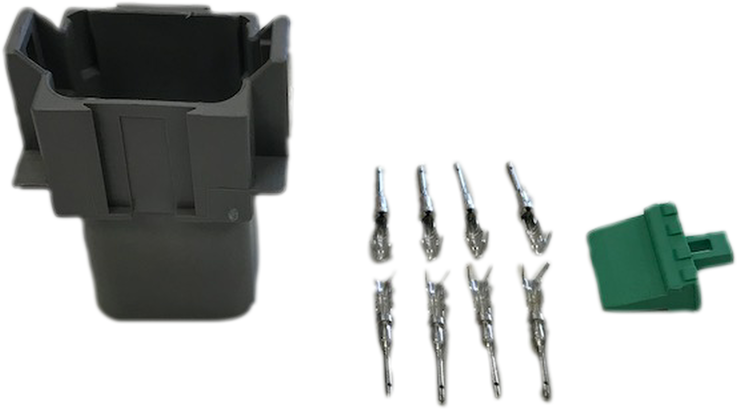

Kit Contents

• 1 x Socket (Female Plug)

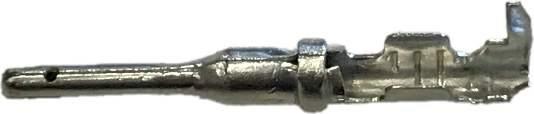

• 8 x Pins
• 1 x Wedge Lock

Ideal for wiring in fog lights, LED work lights, search lights, grill lights, light bars.

Suitable for use within the Automotive, Construction, Off-Road, Heavy Goods Vehicle and Agricultural markets.
