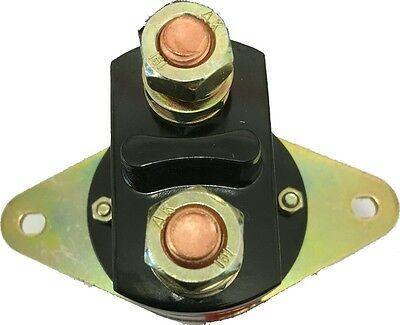

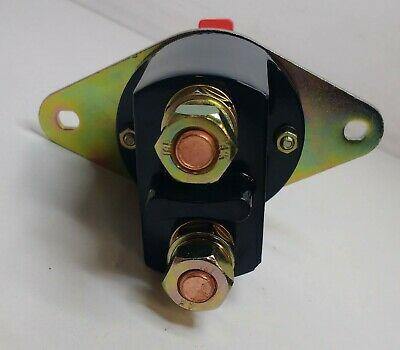

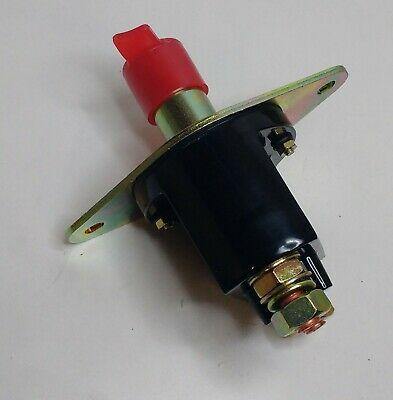

Battery Isolator Kill Switch Shut Off 250 Amp Continuous 12V 24V Robinson K593

BATTERY ISOLATOR KILL SWITCH SHUT OFF 250 AMP CONTINUOUS 12v 24v ROBINSON

K593

METAL TIR HEAVY DUTY BATTERY ISOLATOR SWITCH 10mm Studs

Battery isolator switches enable battery supply to be cut instantly
Vital in an emergency and also very useful during vehicle storage to ensure electrical isolation

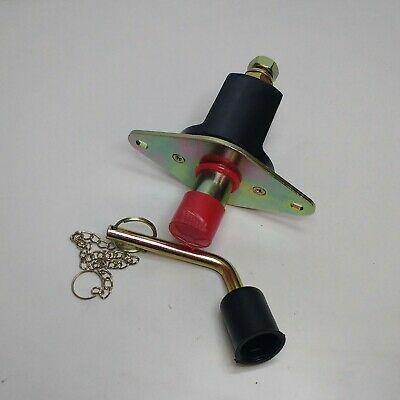

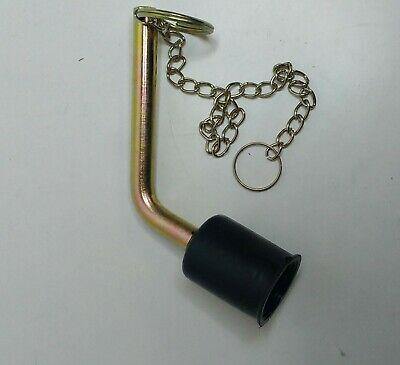

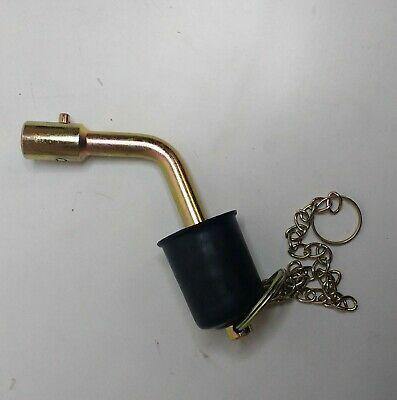

Comes with removable handle with chain

• 250 Amp Continuous @ 12V - 2500 Amp for 10 Seconds
• 125 Amp Continuous @ 24V - 1250 Amp for 10 Seconds
• Supplied Individually Boxed with 1 Key
• Waterproof

Dimensions:

• Requires a mounting hole 22mm
• Bolt fixing holes 100mm apart
• Width 64.5mm, Length 120mm Height 123mm

Electrical specifications

• Voltage  12 / 24
• A/cont.  250 / 125
• A/10 sec.  2500 / 1250

Physical specifications

• No./mount. holes, 2
• Key, with
• Material, Metal
• Dist. mount. holes mm, 100
• Protection degree, IP 66
• Waterproof, Yes
• Type, Battery

CROSS REFERENCE

• BOMAG 15998440
• BOSCH 0341002003
• CASE P641221E
• CLAAS 05709840
• DAF 0122443
• DAF 122443
• FAUN 1731015
• FIAT 343131
• FIAT 3431319
• FIAT 8122114
• HANOMAG 3002733X11
• HANOMAG 975300002
• HENSCHEL 0922075
• INTERNATIONAL HARVESTER 1983420C1
• IVECO 3431319
• IVECO 8122114
• JOHN DEERE AL68661
• KAELBLE-GMEINDER 0370014700
• KAELBLE-GMEINDER 8600810038
• KASSBOHRER 7341101000
• KHD 03431319
• KHD 08122114
• KHD 3431319
• KHD 5166800338
• KHD 8122114
• KHD CH7656
• MAGIRUS-DEUTZ 8122114
• MAN 81255067000
• MAN 90816160511
• MASSEY FERGUSON 30027331
• MASSEY FERGUSON 3613598M91
• MERCEDES 0005452508
• MERCEDES 0005458408
• MERCEDES A0005452508
• MERCEDES A0005458408
• O&K (ORENSTEIN & KOPPEL) 030659
• PUCH (STEYR-DAIMLER-PUCH) 7112850180
• RENAULT 7701010041
• SAVIEM 7701010041
• SCANIA 621730
• STEYR 536080180000
• STEYR 680580089
• UNIC 061269680
• UNIC 3431319
• VOLVO 240315
• ZETTELMEYER 50435205
