Battery Isolator & Change Over Switch 4 Pos Dual Marine 12/24V Wood Auto Bis1026

BATTERY ISOLATOR & CHANGE OVER SWITCH 4 POS DUAL MARINE 12/24v WOOD AUTO BIS1026

Battery Isolator Switch Marine

181613

BIS1026

DIMENSIONS:

• Base Width: 140mm
• Overall Height: 75mm

Electrical specifications:

• Voltage 12-50
• A/cont. 200
• A/5 sec. 1000

Physical specifications:

• No./mount. holes 3
• Key w/o
• Material PBT

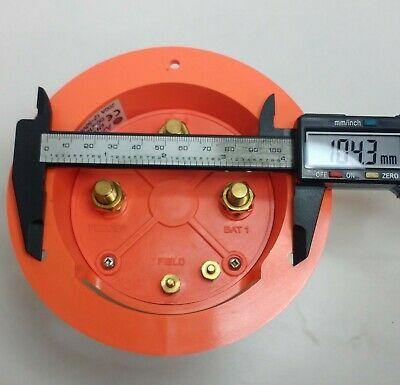

• Dist. mount. holes mm 104
• Protection degree IP 54
• Approval CE
• Poles 3
• Type Battery

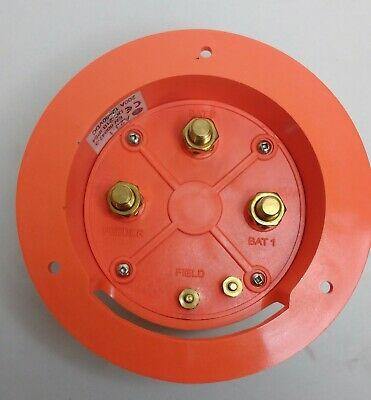

Rear Connections: 2xM4 3xM8

• Great for your boat, caravan, 4x4, showcar, trailer, winch power cable, and more
• Heavy Duty

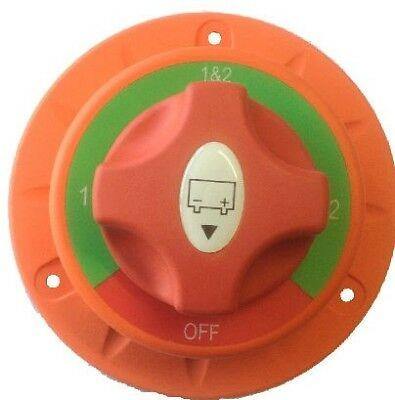

• Battery 1, Battery 2, Both, or Off positions
• Disconnects the battery/batteries safely, to eliminate any power draw from the battery when vehicle or boat are not in use
• Isolates 1 battery or 2 batteries, or links up both batteries in parallel
• Rotary dial has a spring-loaded keeper to lock the selected position
• Easy to install
• 3 mounting screw holes

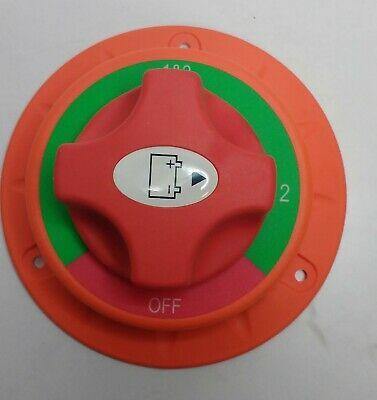

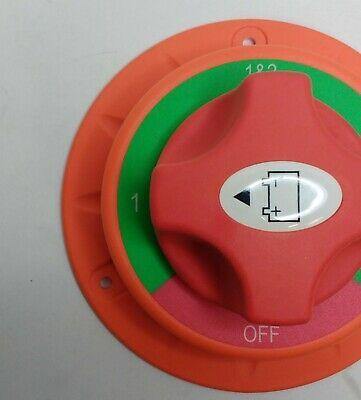

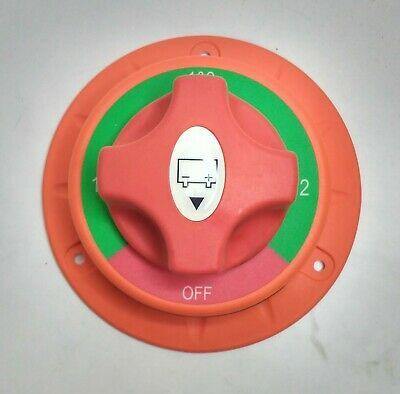

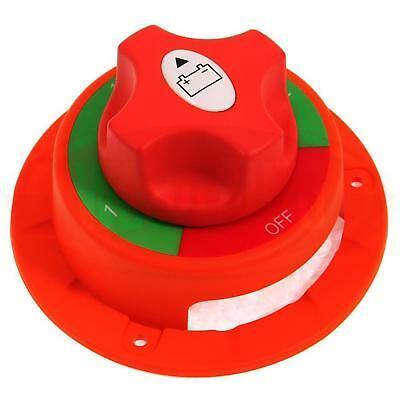

Rotary switch Selects between battery 1, battery 2 or both batteries


ANOTHER HIGH QUALITY WOOD AUTO PRODUCT
