Alternator Rectifier Suits Marelli Denso Vauxhall Vectra Saab Mob Ri-23H

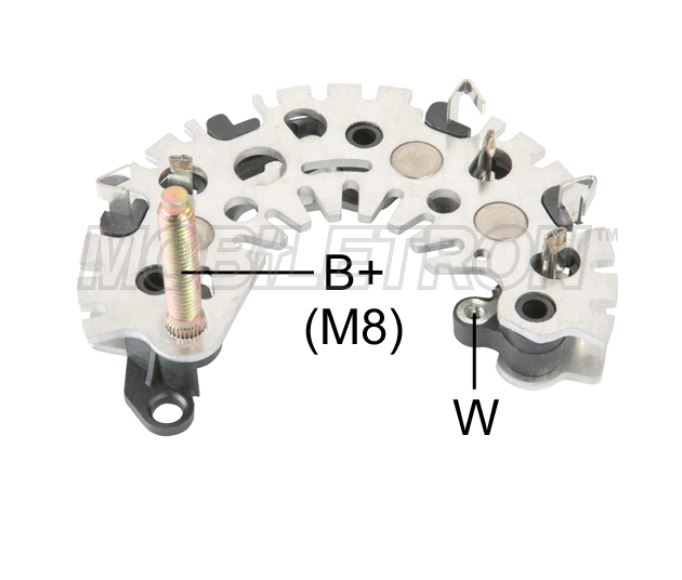

Alternator / Diode plate to suit Marelli / Denso units as fitted to Vauxhall, Saab Etc.

138377
MOBILETRON RI-23H


Electrical specifications

• Voltage 12
• Diode a 50

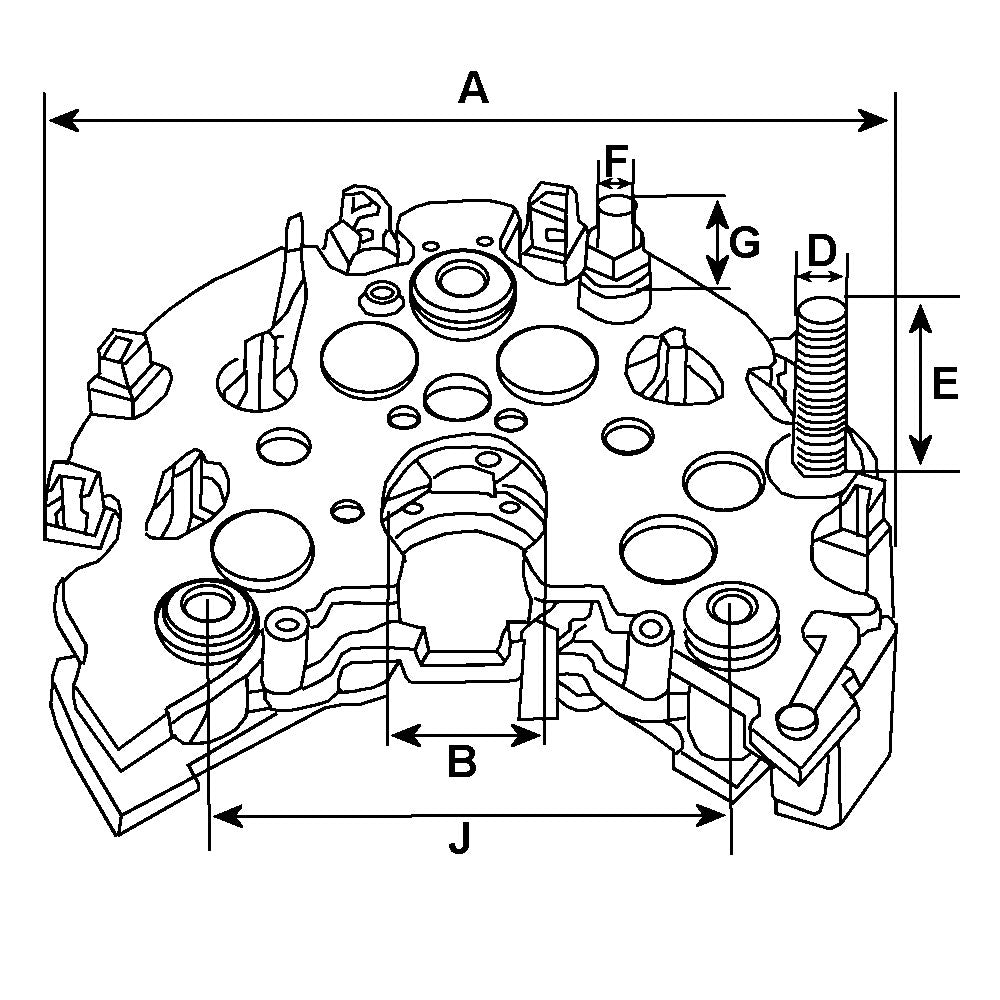

Physical specifications

• B+ type Screw
• A OD 122.00
• J Mount. dist. 85.00
• D B+/threaded M8/35.00
• Diode type Avalanche
• Capacitor w/o
• No. of diodes 6

Further information

• w/ terminal W.
• Servicing A127IR

VAUXHALL OPEL 1.9 CDTI VECTRA, ZAFIRA, FIAT, SIGNUM, ASTRA, SAAB, Etc.

Very very common fault on a127i units & not rocket science to fit


CROSS REFERENCE, OEM REFERENCE

• FIAT/MARELLI 063624201010
• FIAT/MARELLI 63624201
• FIAT/MARELLI 63625801
• FIAT/MARELLI RDD42
• FIAT/MARELLI RDD42A
• FIAT/MARELLI RDD42B
• FIAT/MARELLI RDD760724
• LUCAS UBB814

FITS UNITSFIAT/ MAGNETTI MARELLI / DENSO

• 54022669 63320545 63321238
• 63321310 63321315 63321316
• 63321328 63321331 63321332
• 63321335 63321340 63321349
• 63321355 63321390 63321391
• 63321398 63321401 63321402
• 63321418 63321419 63321423
• 63321425 63321426 63321453
• 63321461 63321658 63321702
• 63321804 63321939 63341238
• 63341702 63377490 63377491
• 63377492

This Will Even Fit Ford & new Holland Tractors And Landrover Fitted With A127i Units by Simply Changing The + Stud
