50 X Clear Glue Lined Heat Shrink Butt Splice Terminal Duraseal Type Ctie Hsb0.5

50 CLEAR GLUE LINED HEAT SHRINK BUTT SPLICE TERMINAL DURASEAL TYPE CTIE HSB0.5

HSB0.5 x 50

50 x INSULATED HEAT SHRINK BUTT SPLICES, CLEAR DURASEAL TYPE CRIMP CONNECTORS


ADHESIVE LINED FOR WATERTIGHT JOINT FOR CABLES

• Material (Insulation) – High Density Polyethylene
• Material (Terminal) – Copper
• Material (Terminal Plating) – Electro Tin Plating
• Maximum Electrical Rating – 600 Volts Max

Specification

• Waterproof
• Tip type: Heat shrink butt splice
• Wire cross-section: 0.2 - 0.5
• Ferrule variant: insulated
• Colour: Clear

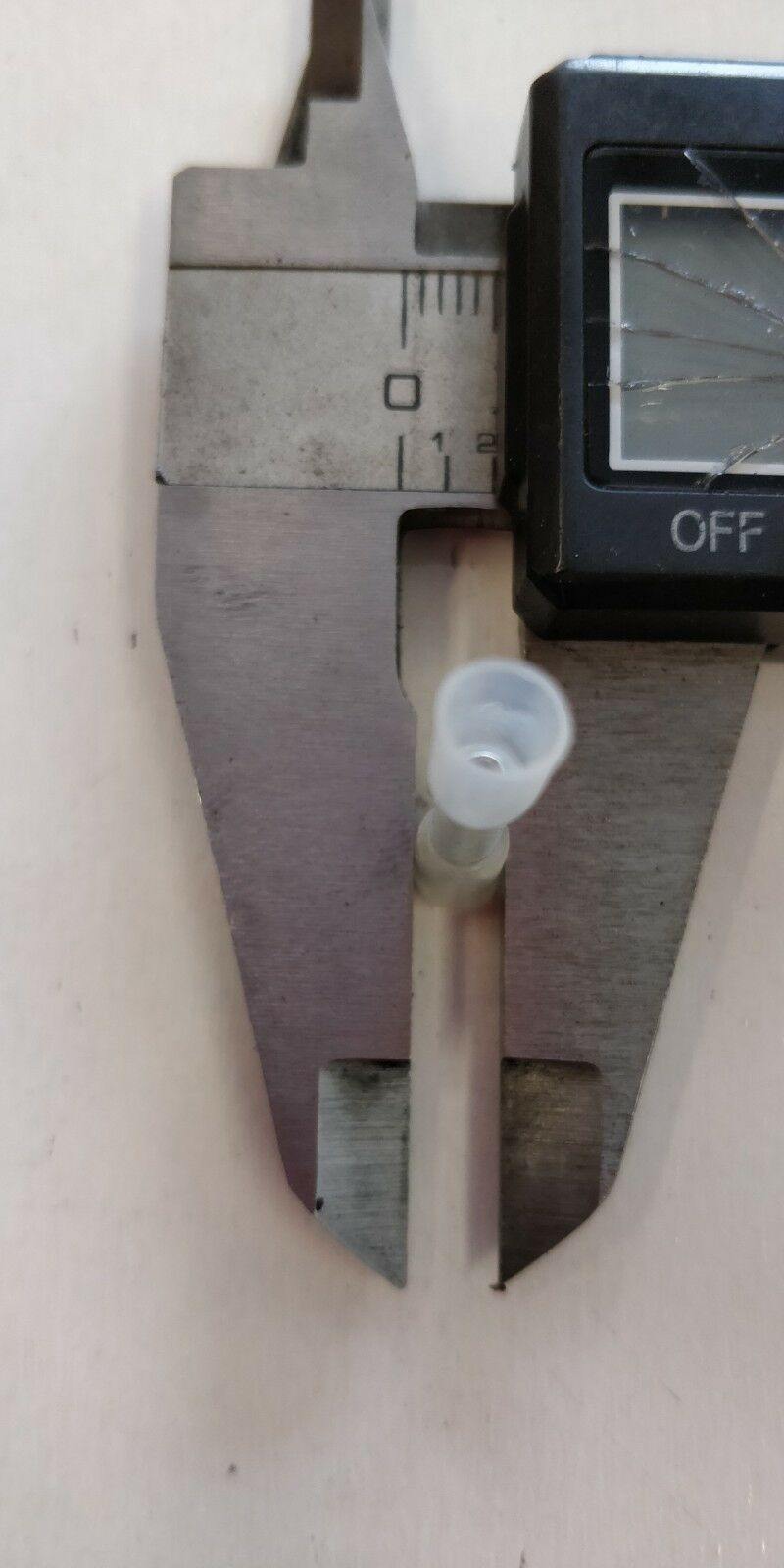

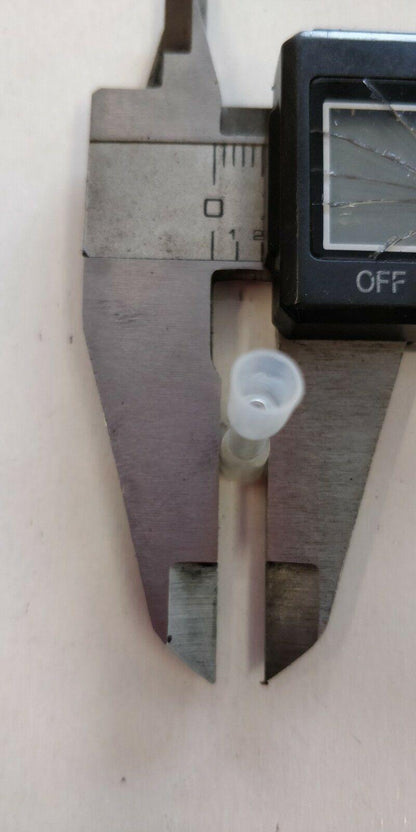

Dimensions:

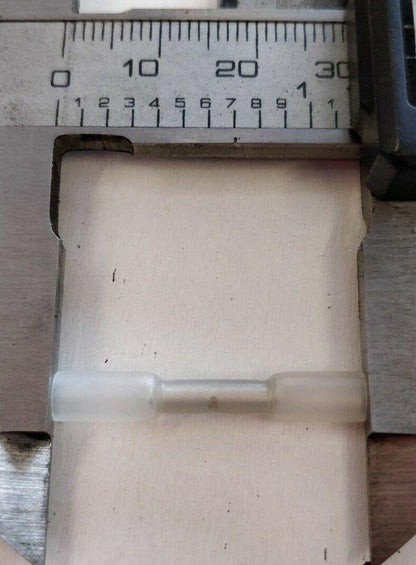

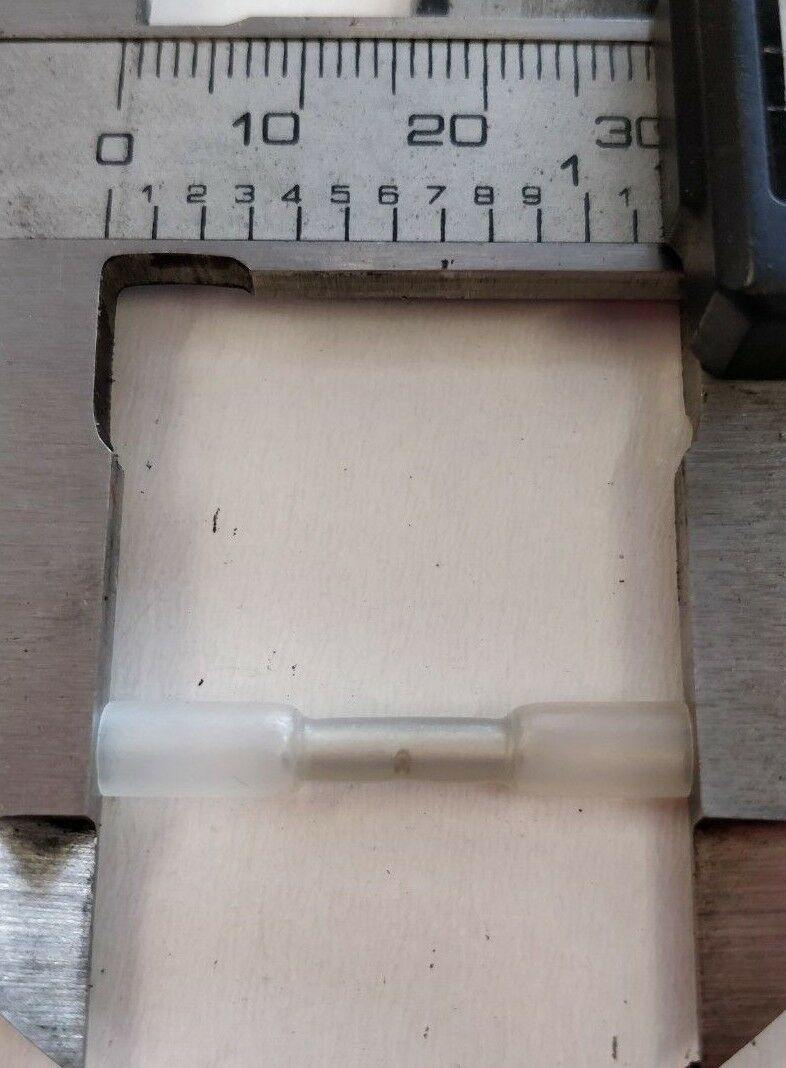

• Length: 29mm
• Width: widest part - 5mm
• Narrowist part - 3.5mm

Directions

• place the cable in the metallic barrel and crimp firmly, then shrink the plastic cover by heating in the usual way. An adhesive on the inside of the plastic cover bonds to the cable, securing and water proofing the connection. Made from tin-plated copper and heat-shrinkable PVC.Supplied in packs of 100.

Another Top Quality Product From Ctie UK
