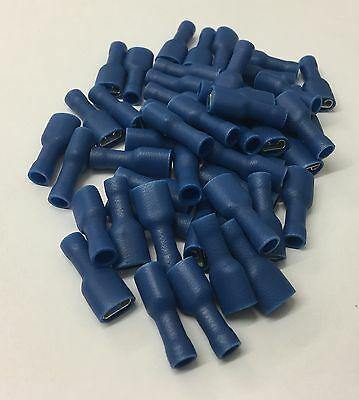

50 x 6.3mm Blue Fully Insulated Female Spade Terminals

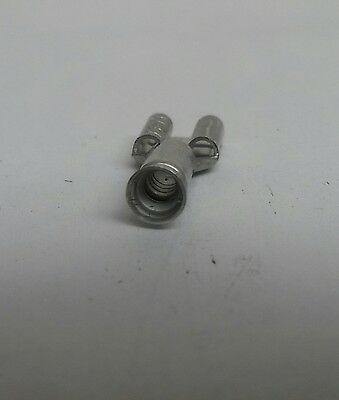

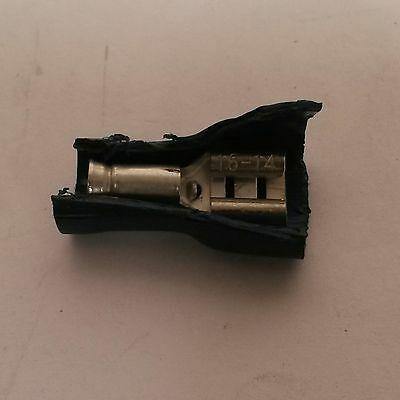

These Terminals are Double Sleeved or ( Double Collared ) For better Crimp Connection
RSL239 / T2POFTI63508
Our range of easy entry, PVC insulated crimp terminals combines high quality with a market leading price
- Material (Insulation) – PVC
- Material (Terminal) – Brass
- Material (Sleeve) – Copper
- Material (Terminal Plating) – Electro Tin Plating
- Maximum Temperature – 75oC
- Maximum Electrical Rating – 300 Volts Max
- Insulation Colour = BLUE (1.5 – 2.5MM2 )
- Tab = 6.4 x 0.8
- B = 6.6
- F = 7.9
- L = 22.0
- E = 10.0
- D = 5.0
- d1 = 2.3
Specification:
- To suit cable size 1.5-2.5mm² / 16 - 14 AWG
- Terminal type: flat
- Width: 6.3mm
- Thickness: 0.8mm
- Terminal kind: Female
- Wire cross-section: 1.5...2.5mm²
- Connector variant: Fully Insulated
- Colour: Blue
1 bag of 50
Another Quality Product from Ctie Uk (one of Europe's leading suppliers of cable accessories)
