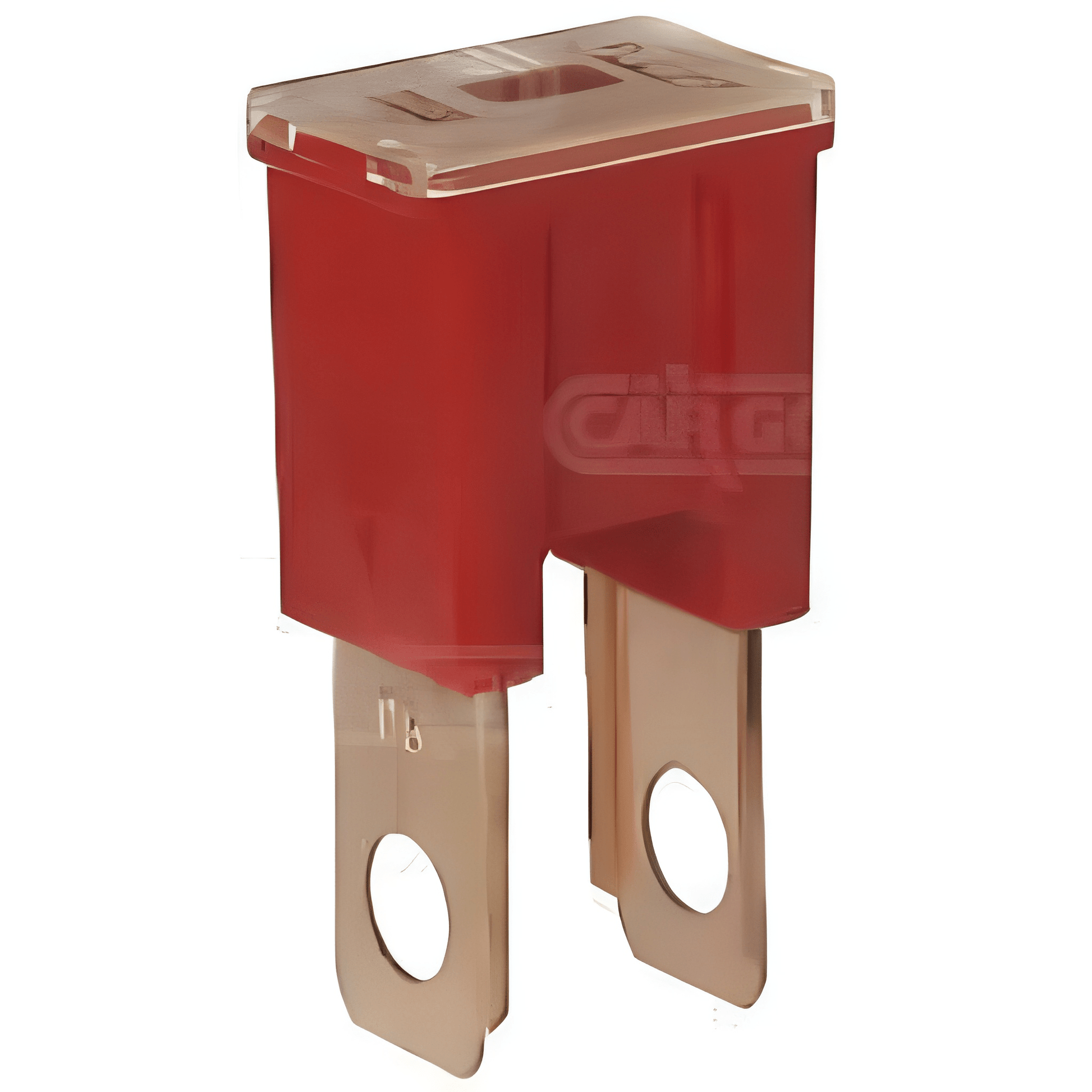

50 Amp Pal Japanese Fuse Slow Blow 294 Series Red 12V 24V 32V Cargo 191974

PAL FUSE Slow Blow 294 Series Red 50a

191974

PAL fuses are commonly found on many Japanese and domestic built vehicles.

Electrical specifications

• Amp 50
• Voltage up to 32

Physical specifications

• Length mm 42.8
• Type Slow blow
• Colour Red
• Reference PAL294

ELECTRICAL CHARACTERISTICS

• Voltage Rating: up to 32 VDC
• Current Cycling: 24˚C
• The fuses satisfy the performance requirements after 50% of the rated current
• is applied for 10,000 cycles. Each cycle consists of an interrupted current with
• the pattern of 5 minutes ON and 10 minutes OFF.
• Operating Temperature Range: -40˚C to 흮˚C
• Complies with JASO 0612

Time-Current Characteristics

• % of Rating Opening Time Min / Max (s)
• 110 14,400 s
• 200 5 s / 100 s
• 350 0.2s / 7 s
• 600 0.040 s / 1 s

ANOTHER HIGH QUALITY HC CARGO PRODUCT ( A BOSCH GROUP COMPANY)
