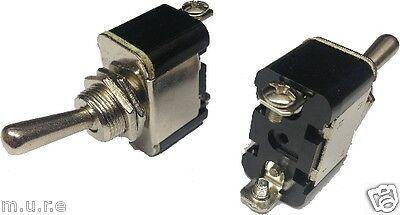

5 X On Off Toggle Switch Flick Metal Car Dash Flip 12V 25Amp Hd Robinson K891

Pack of 5 12V On/Off Metal Heavy Duty Toggle Switch

K891 x 5

Switch

• Fits a 12.5 mm round hole
• Silver Contacts
• Note 1 On/Off metal toggle switch
• Note 2 Double pole
• Note 3 2 x Screw terminals
• Note 4 12v, 25A

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).
