4 Pin Split Charge Relay Switch Battery High Performance 12V 100A Cargo 160477

4 PIN SPLIT CHARGE RELAY SWITCH HIGH PERFORMANCE 12V 100A CARGO CARGO 160477

These High Performance Relays Have many Uses And are used extensively in split charge auxiliary battery systems on Campers, Caravans, Vans, Commercial and Leisure Vehicles to provide constant power the the second set of batteries while the vehicle system is charging.

HIGH PERFORMANCE HEAVY DUTY RELAY SWITCH 12V 100A 4 TERMINAL

160477

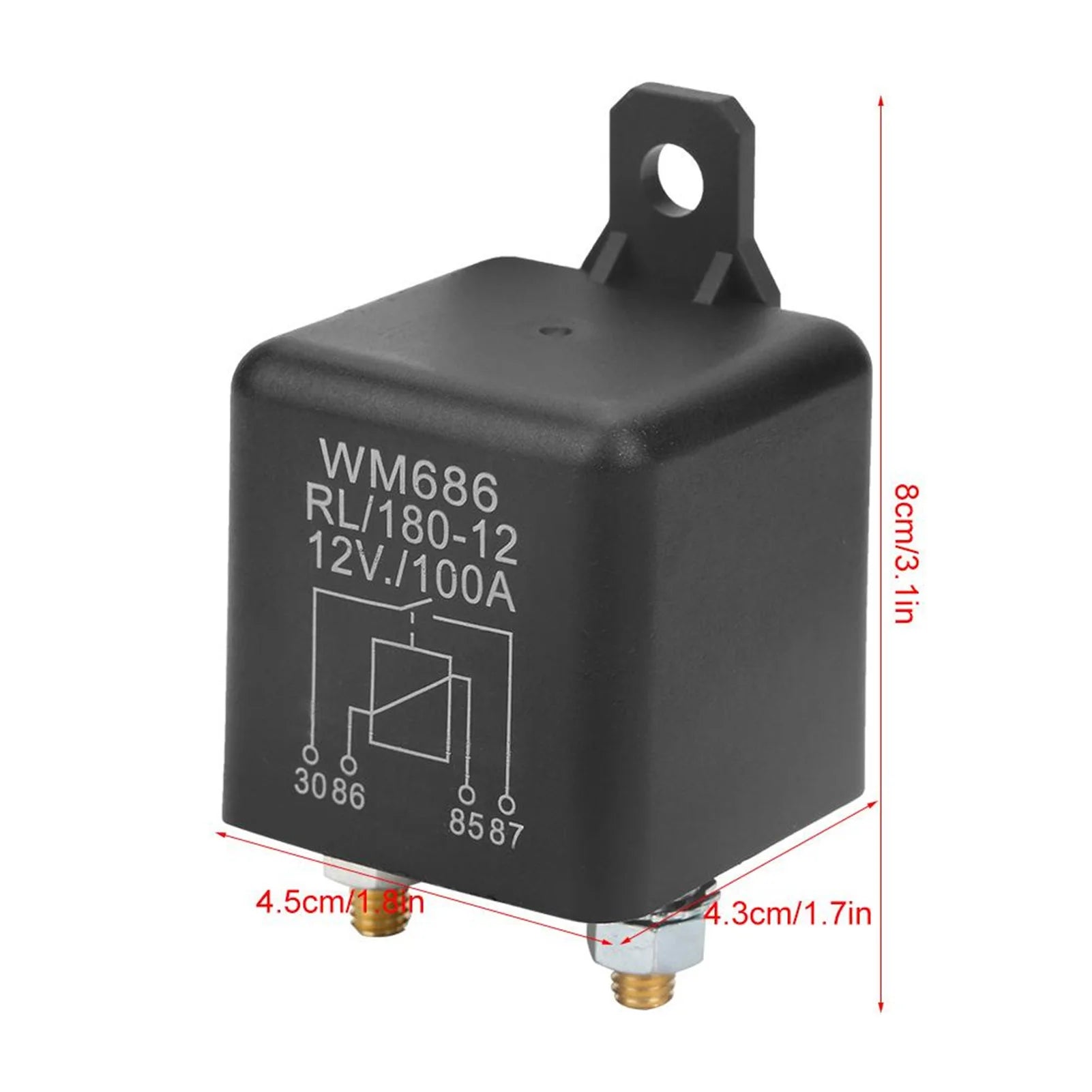

Dimensions

• Width: 45.5mm
• Height: 45mm
• Overall Height (inc bracket and terminals) : 77mm

Electrical information

• Voltage 12
• Amp 100

Physical information

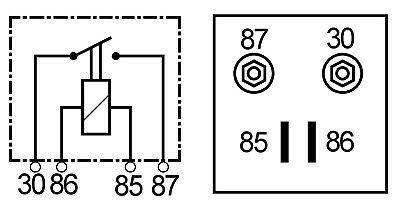

• Terminals 4
• Bracket w/
• Type High performance

Further information

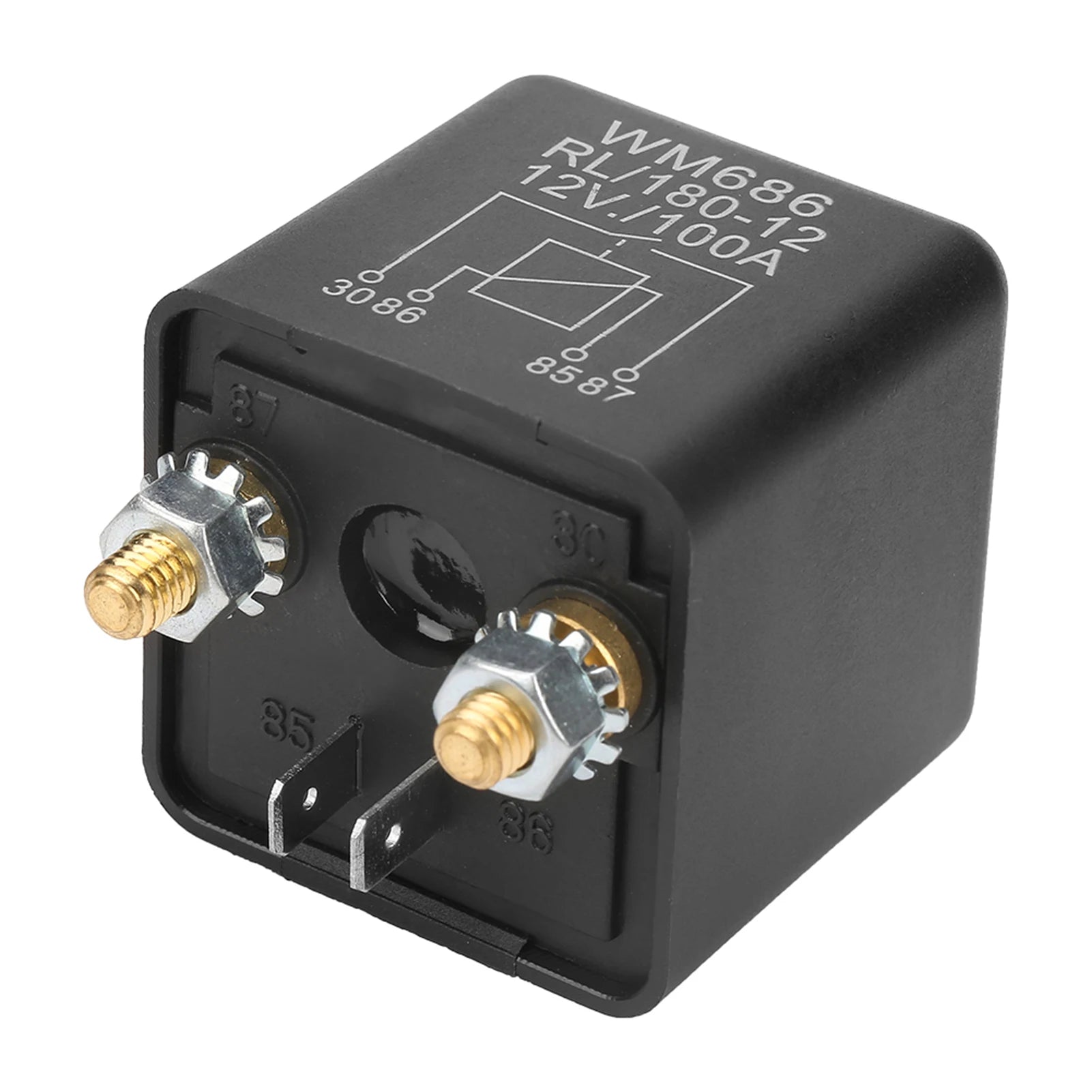

• 2 x 6.3 mm Spade Terminals
• 2 x M6 Screws.

Replacing

• 160477Z HC-Cargo
• RBC2112 Mahle
• RL18012 Mahle
• RL8012 Mahle

ANOTHER HIGH QUALITY HC CARGO PRODUCT
( A BOSCH GROUP COMPANY )
