12V 24V Cable 10M 12 Core (7 + 1 + 4) Pvc Trailer Caravan Wire Maypole MP305

12V 24V Cable 10M 12 Core (7 + 1 + 4) Pvc Trailer Caravan Wire Maypole MP305

Vendor:Maypole

Availability: Low stock: 2 left

Product Type:MP305

Product Indentifier:7426994729322

Regular price

£60.86 £50.72 ex VAT

Regular price £37.35 Sale price £50.72 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

12V 24V CABLE 10M 12 CORE (7 + 1 + 4) PVC TRAILER CARAVAN WIRE MAYPOLE

MP305

10 Meters 12 Core Cable (7 + 1 + 4)

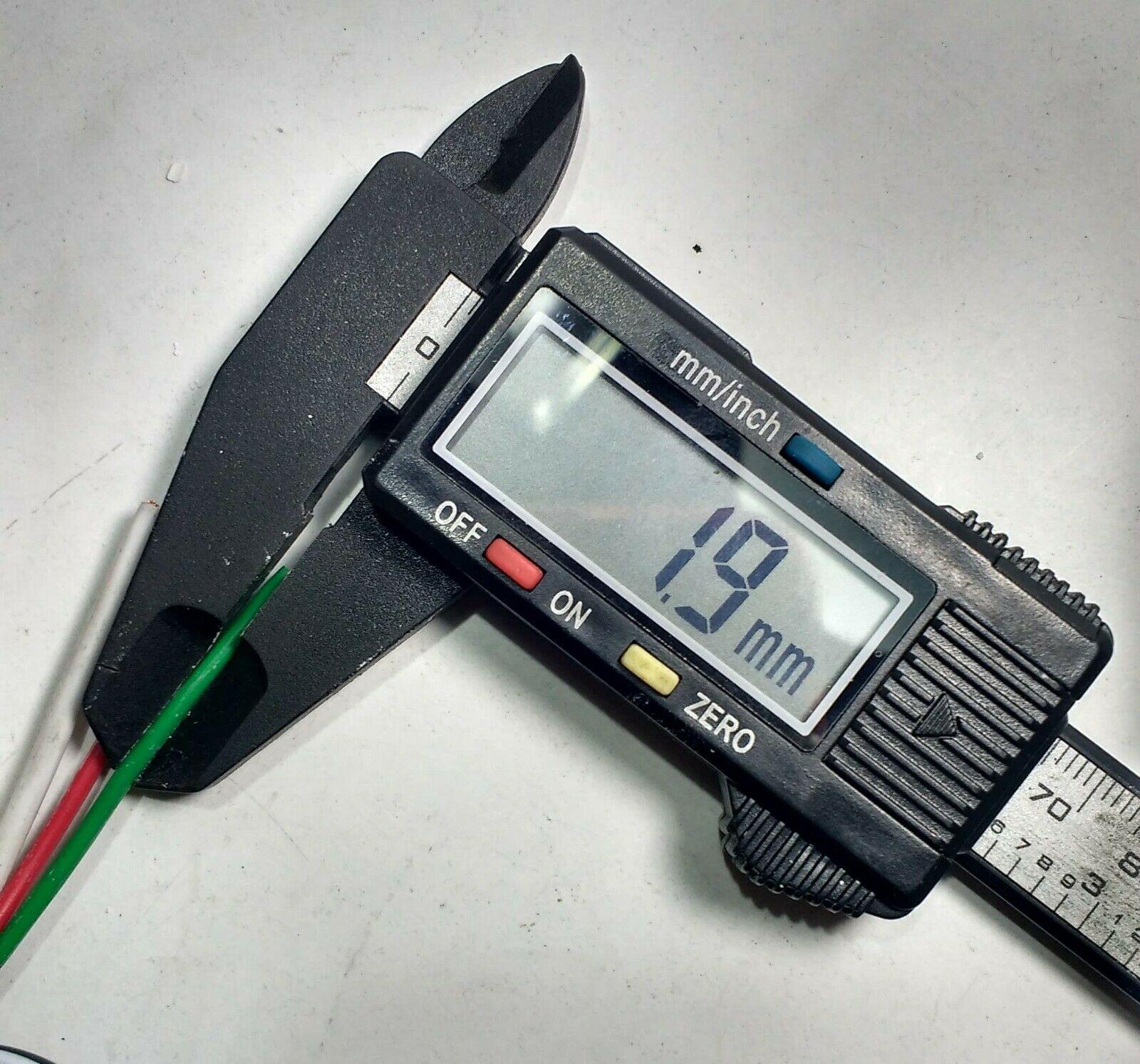

  • 7 Wires Rated at 1.9mm (0.65mm²)

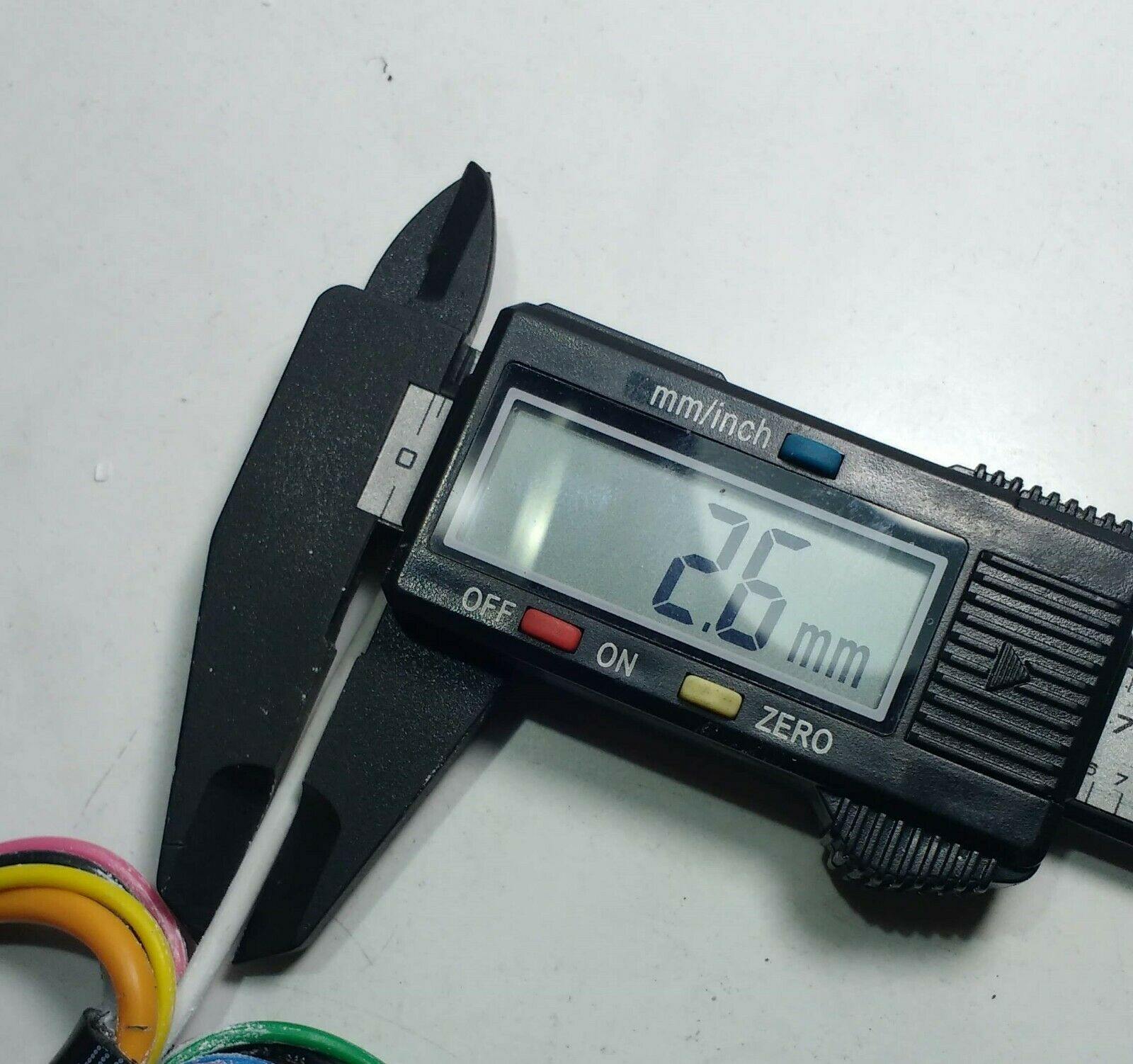

  • 1 Wire rated at 2.6mm (1.5mm²)

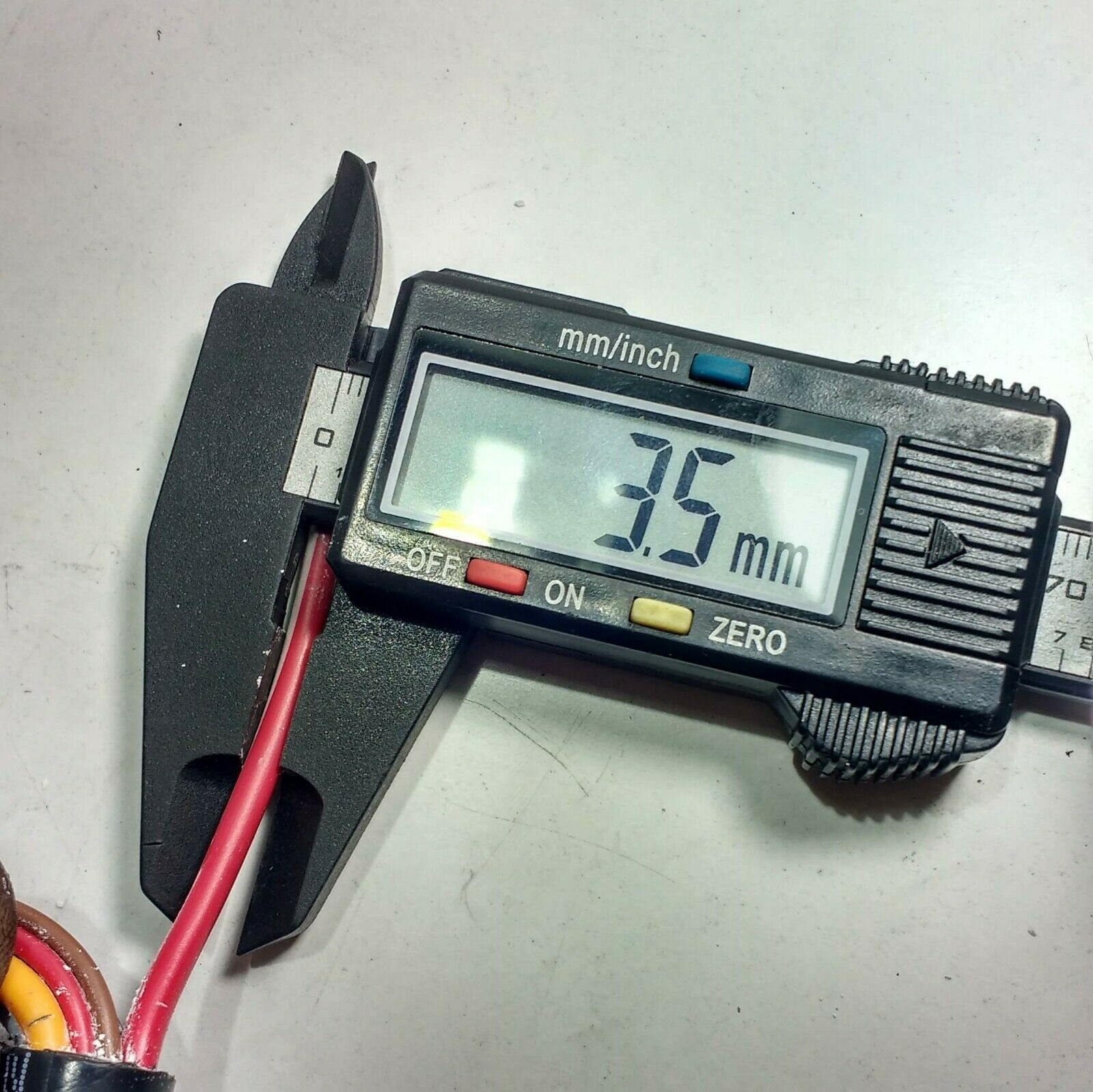

  • 4 Wires Rated at 3.5mm (2.5mm²)

DOES NOT COME ON A REEL, COMES AS A CUT LENGTH FROM REEL

  • Stranded copper conductors

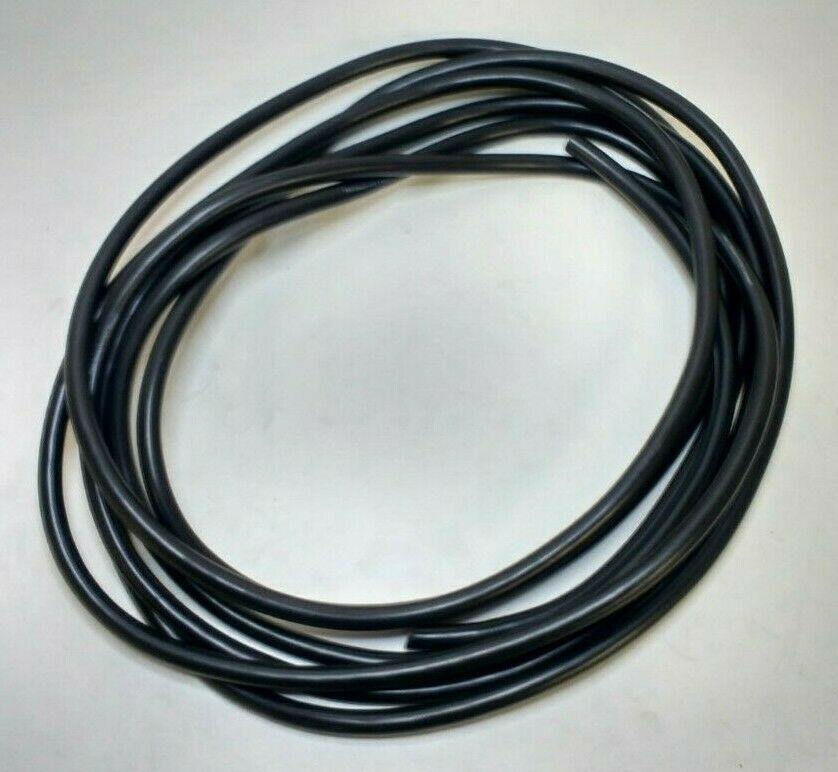

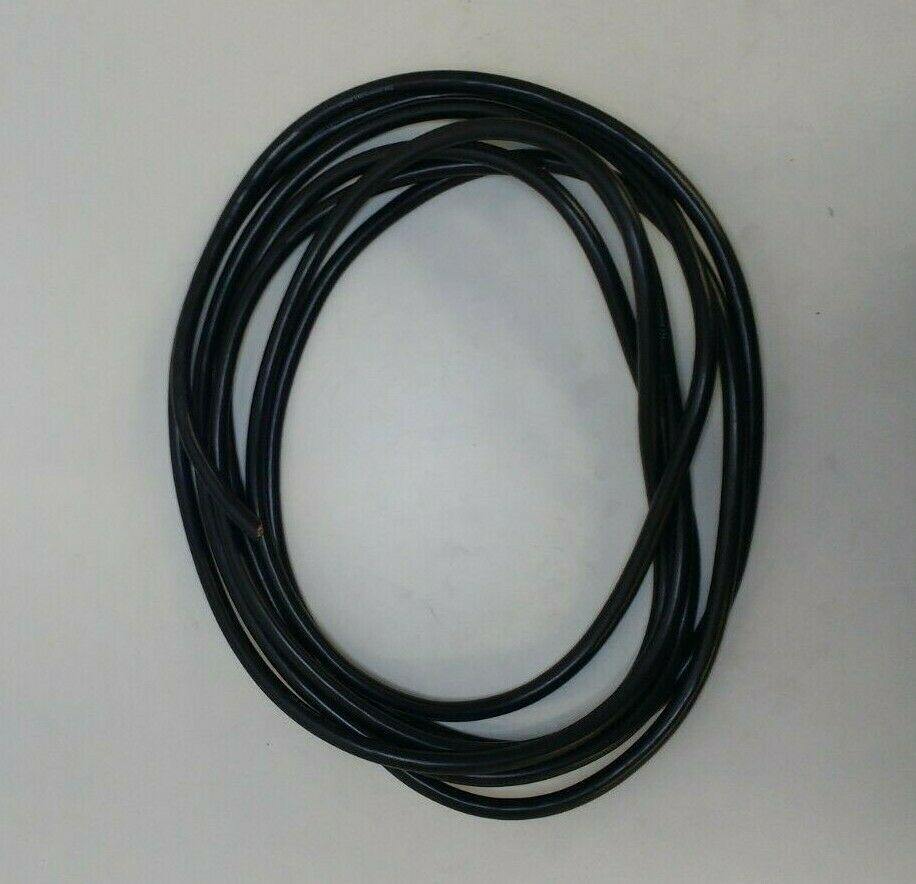

  • The outer insulation is black pvc
  • Brand new sealed cable.
  • High temperature thin wall
  • 70 degrees
  • Manufactured in accordance with BS6862 Part 1 1971, where applicable
  • Resistant to petrol, lubricating oils and diluted acids

Description:

  • 12 core black trailer cable ideal for 13 pin towing electrics
  • 5 Amp + 12 Amp + 21 Amp

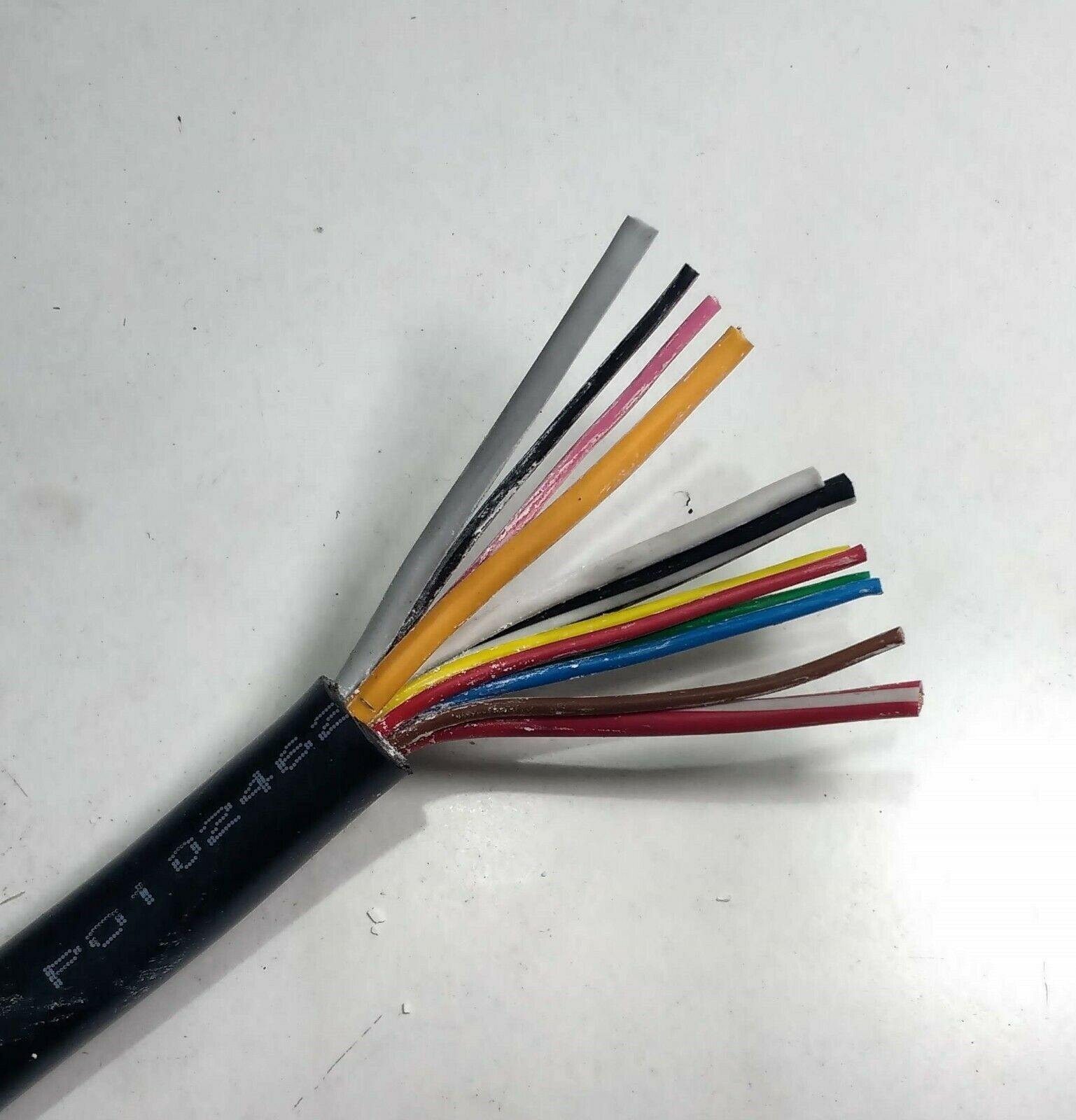

  • Spec. 7x0.65mm² (yellow, blue, green, brown, red, black, brown and dark red)
  • 1x1.5mm² (white)
  • 4x2.5mm² (orange, black & white, red & white and grey)
  • PVC insulated, gives good resistance to abrasion or cut through


UNIVERSAL, ANOTHER GOOD QUALITY PRODUCT

Below we have compiled a guide to help you decide which cable you need for your particular application

As a rule on a 12 volt system each Amp will allow you to run 12 watts, so the table shows amp to wattage conversion

Also we would advise for you to allow a little bit higher amperage from what you actually need to allow for power spikes etc. just to be on the safe side.

All our cable is of the highest quality

1 amp = 12 watts
2 amp = 24 watts
3 amp = 36 watts
4 amp = 48 watts
5 amp = 60 watts
6 amp = 72 watts
7 amp = 84 watts
8 amp = 96 watts
9 amp = 108 watts
10 amp = 120 watts
11 amp = 132 watts
12 amp = 144 watts
13 amp = 156 watts
14 amp = 168 watts
15 amp = 180 watt
16 amp = 192 watts
17 amp = 204 watt
18 amp = 216 watts
19 amp = 228 watts
20 amp = 240 watts
21 amp = 252 watts
22 amp = 264 watts
23 amp = 276 watts
24 amp = 288 watts
25 amp = 300 watts
26 amp = 312 watts
27 amp = 324 watts
28 amp = 336 watts
29 amp = 348 watts
30 amp = 360 watts
