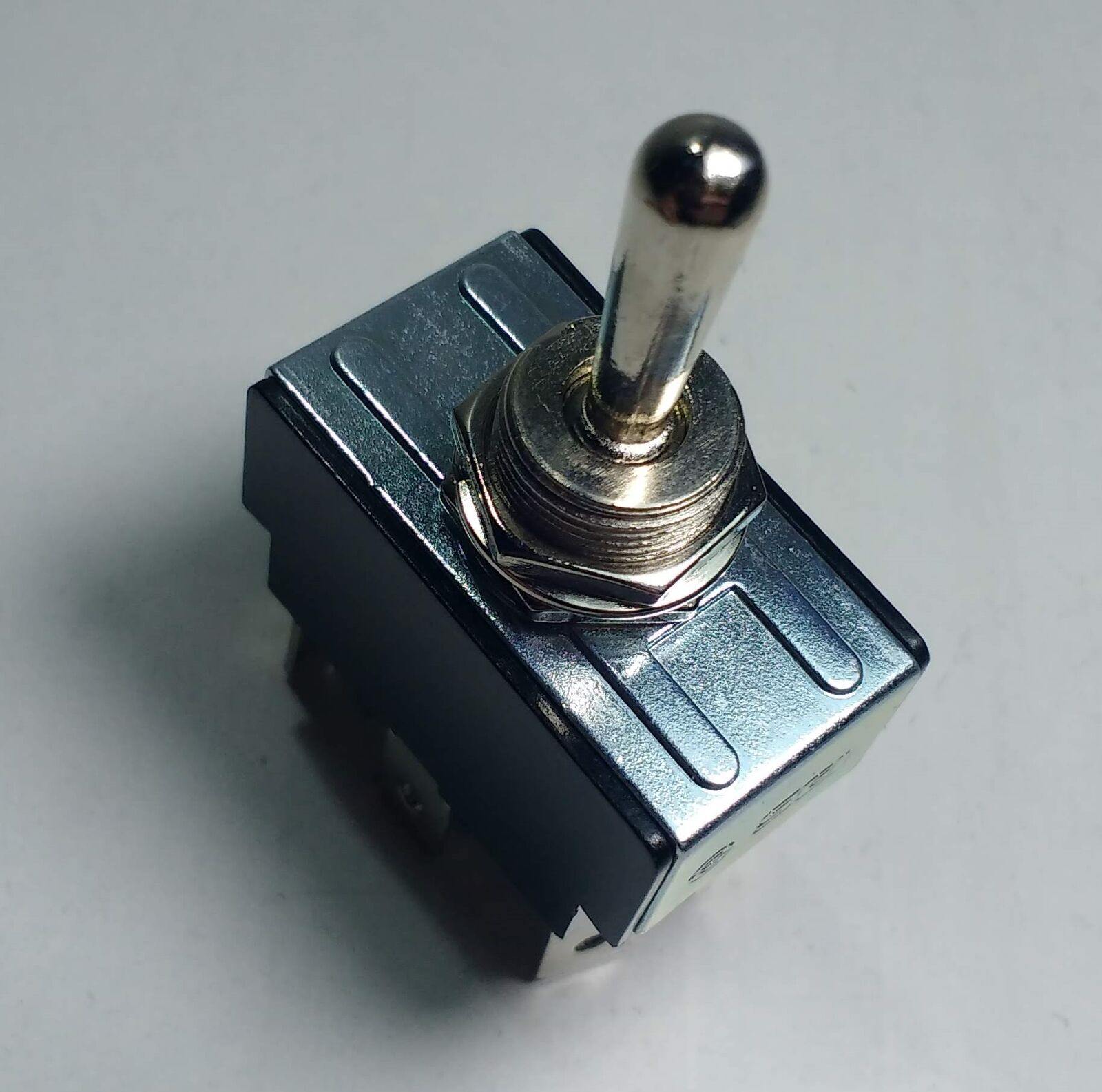

On/Off/(On) Toggle Switch 6 Terminals Spring Loaded 12V 16A 24V Cargo 180593

ON-OFF-(ON) METAL TOGGLE, FLICK SWITCH SPRING LOADED IN 1 POSITION

180593

Electrical specifications

• Voltage 12 =  Amp. 16
• Voltage  24 = Amp 8

Physical specifications

• Terminals 6
• Solenoid On / Off / ( On )
• Mount. hole size mm 12
• 2 poles Yes
• Arm Short
• Material Metal

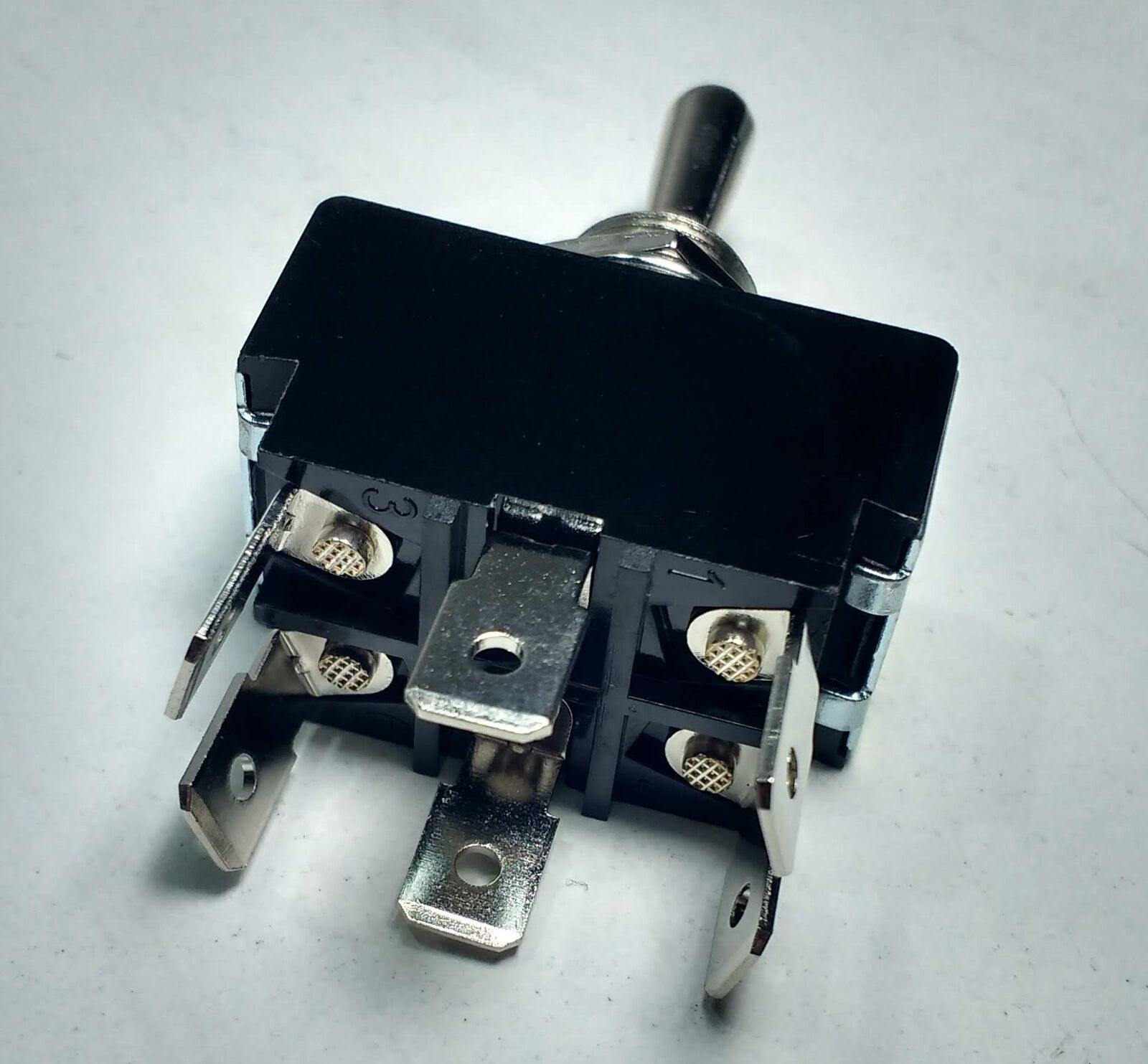

• 6 x 6.3MM LUCAR TERMINALS

Further Information

• THIS SWITCH IS SPRING LOADED MOMENTARY IN 1 ON POSITION WHEN THE SWITCH IS RELEASED IT SPRINGS BACK TO THE CENTRAL OFF POSITION.
• THE OTHER ON POSITION STAYS ON UNTIL MANUALLY SWITCHED TOOFF

What do SPST, SPDT, DPST, and DPDT mean?
SP and DP refer to single pole and double pole, ST and DT refer to single throw and double throw.

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and act like two identical switches that are mechanically linked). Do not confuse ‘pole’ with ‘terminal’. The DPST switch, for example, has four terminals, but it is a DP, not a 4P switch.

Throw refers to the extreme position of the actuator: ST switches close a circuit at only one position. The other position of the handle is Off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (frequently On-Off-On).

ANOTHER HIGH QUALITY HC CARGO PRODUCT (A BOSCH GROUP COMPANY )
